Panasonic WV-SC385 I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera

CODE: WV-SC385

List price: $1,818.00

$1,044.00

You save: $774.00 (43%)
-43%

FREE SHIPPING!!!

Panasonic WV-SC385  I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera 18x optical zoom Panasonic WV-SC385  I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera indoor
Panasonic WV-SC385  I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera pan  tilt zoom in Panasonic WV-SC385  I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera face detection

Panasonic WV-SC385 I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera
The Panasonic WV-SC385 I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera with a 1.3 MP MOS image sensor offers high-quality imagery with high sensitivity. Loaded with amazing features like 18x optical zoom and 12x digital zoom, the Panasonic WV-SC385 is designed to be able to monitor a wide area with its pan tilt and zoom controls. The Face Super Dynamic provides clear face images; the face-detection function helps in detecting the position of human faces and sends the information via XML or video stream for evaluation. With a minimum illumination of 0.031 lux (color) and 0.004 lux (b&w), the camera offers clear images even in low light conditions. The dome network camera also features Adaptive Digital Noise Reduction (2D-DNR and 3D-DNR) to deliver clear images by removing signals that could result in video noise grainy images.

The Panasonic WV-SC385 I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera's HD720p megapixel resolution captures crisp, smooth video, making it easy to identify people in view, while the pan/tilt system provides surveillance of a large area using only a single camera. To increase user system options, the camera is Open Network Video Interface (ONVIF)-compliant, while system migration is more easily facilitated with the H.264 or MPEG-4 selectable format. Super Dynamic and Adaptive Black Stretch (ABS) technologies combine to deliver 128x wider dynamic range than conventional cameras and supports power over Ethernet (PoE).

Key Features of the Panasonic WV-SC385 I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera

  • 720p HD images up to 30 fps: provides sharper images with greater clarity

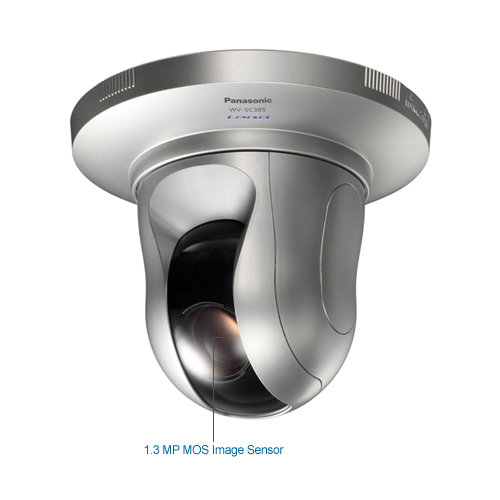

  • Newly developed 1.3 Megapixel double speed MOS Sensor: captures footage in exceptional detail and clarity
  • Super Dynamic 128x wider dynamic range: can record greater scene details, from shadows to highlights than normal.
  • Face Super Dynamic technology: ensures clear face image
  • Supports Power over Ethernet (PoE) IEEE 802.3af: to simplify installation
  • Desktop/Ceiling position choice: various optional brackets for versatile installations
panasonic wv-sc385  i-pro 1.3 megapixel indoor 18x ptz security camera>

Panasonic WV-SC385 I-Pro 1.3 Megapixel Indoor 18x PTZ Security Camera Specifications

  • Image Sensor: 1/3 type MOS Sensor
  • Effective Pixels: Approx. 1.3 megapixel
  • Scanning Mode: Progressive scan
  • Scanning Area: 4.8 mm (H) x 3.6 mm (V)
  • Minimum Illumination: Color: 0.5 lx, B/W: 0.06 lx at F1.6 (Shutter: 1/30 s, AGC: High),
  • Color: 0.031 lx, B/W: 0.004 lx at F1.6 (Shutter: 16/30 s, AGC: High)
  • White Balance: AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
  • Light Control Mode: Outdoor : Automatic integration of ALC and ELC / Indoor [50 Hz]: Automatic integration of ALC and ELC / Indoor [60 Hz]: Automatic integration of ALC and ELC
  • Shutter Speed: Fix shutter: OFF (1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000
  • Super Dynamic: ON / OFF
  • Face Super Dynamic: ON / OFF (Only at Super Dynamic: ON)
  • Dynamic Range: 52 dB typical (Super Dynamic: ON, Light Control mode: Indoor)
  • Adaptive Black Stretch: ON / OFF
  • AGC: ON (LOW, MID, HIGH ) / OFF
  • Electronic Sensitivity: UP OFF, max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30
  • Black and White Mode: Mode-AUTO1 / AUTO2 / AUTO3 / ON / OFF, Level: High / Low, with external control
  • Digital Noise Reduction: High / Low
  • Video Motion Detection: 4 areas, Sensitivity: 15 steps, Detection size: 10 steps
  • Privacy Zone: Up to 8 zones, Gray / Mosaic
  • Up Side Down: ON (desktop) / OFF (ceiling)
  • Auto Image Stabilizer: ON / OFF
  • Camera Title (OSD): Up to 20 alphanumeric characters (3 selectable character sizes)
  • Focal Length: 4.7 mm ~ 84.6 mm
  • Zoom Ratio: 18x / 36x with extra optical zoom (at VGA resolution)
  • Digital (Electronic) Zoom: 12x (Max. 432x combined with extra optical zoom under VGA)
  • Angular Field of View: H: 3.2° (Tele) ~ 55.2° (Wide), V: 2.4° (Tele) ~ 42.1° (Wide)
  • Maximum Aperture Ratio: 1 : 1.6 (Wide) ~ 2.8 (Tele)
  • Focus Range: 1.5 m ~ ­
  • Aperture Range: F1.6 ~ 22, Close
  • Panning Range:  0° ~ 350°
  • Panning Speed Manual: approx. 0.5°/s ~ 100°/s, Preset: up to approx. 300°/s
  • Tilting Range: –30° ~ 90° (upward-level-downward), Tilting angle limit: 10° / 5° / 3° / 0° / –3° / –5° / –10° / –15° / –20° / –25° / –30°
  • Tilting Speed: Manual-approx.0.5°/s ~ 100°/s, Preset: up to approx. 100°/s
  • Proportional Pan/Tilt Control: Yes
  • Number of Preset Positions: 64
  • Auto Mode: OFF / preset sequence / auto pan / auto track
  • Image Hold: ON / OFF
  • PTZ Position Display: ON / OFF
  • Self-Return: 10 s / 20 s / 30 s / 1 min. / 2 min. / 3 min. / 5 min. / 10 min. / 20 min. / 30 min. / 60 min.
  • 360 Pan-Flip: ON / OFF
  • Map Shot: 360 map shot / preset map shot
  • Camera Control: Pan/Tilt (16 steps), Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode
  • Display Mode: Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available.
  • Camera Title: Up to 20 alphanumeric characters
  • Clock Display: Time: Time: 12H / 24H, Date: 5 formats on the browser, Summer time (Manual/AUTO)
  • Alarm Control: Reset
  • One Shot Capture: A still picture will be displayed on a newly opened window
  • Audio: Mic-(Line) Input: ON / OFF Volume adjustment: Low / Middle / High, Audio Output: ON / OFF Volume adjustment: Low / Middle / High
  • SD Memory Data Download: Still or motion images recorded in the SDHC/SD memory card can be downloaded.
  • GUI/Setup Menu Language: NTSC-English, French (Installation required for French), PAL-English, French, Italian, Spanish, German, Russian (Installation required except for English)
  • System Log Up to 100 (Internal), Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG.) error logs
  • Supported OS: Microsoft® Windows® 7 Professional 64 bit/32 bit, Microsoft® Windows Vista® Business SP1 32 bit, Microsoft® Windows® XP Professional SP3 The language of the OS must be same as selected GUI language.
  • Supported Browser: Windows® Internet Explorer® 8.0 (32 bit) (Microsoft® Windows® 7 Professional 64 bit/32 bit), Windows® Internet Explorer® 7.0 (Microsoft® Windows Vista® Business SP1 32 bit), Microsoft® Internet Explorer® 6.0 SP3 (Microsoft® Windows® XP Professional SP3)
  • Network IF: 10Base-T / 100Base-TX, RJ-45 connector
  • Image Resolution: Aspect Ratio-[4 : 3] H.264: 1,280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps / MPEG-4: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps / JPEG (MJPEG): 1,280 x 960 / 640 x 480 / 320 x 240, up to 30 fps
  • Image Resolution: Aspect Ratio-[16 : 9] H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps / JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
  • H.264/ MPEG-4: Transmission Mode-Constant bitrate / Framerate priority / Best effort
  • Frame Rate: NTSC-1 / 3 / 5 / 7.5 / 10 / 15 / 20 / 30 fps, PAL- 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
  • Bit Rate/Client: 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192* kbps / Unlimited * H.264 mode Only
  • Image Quality: LOW / NORMAL / FINE
  • Refresh Interval: 0.1 fps ~ 30 fps
  • Transmission Type: UNICAST / MULTICAST
  • JPEG (MJPEG) Image Quality: 10 steps
  • JPEG (MJPEG) Transmission Type: PULL / PUSH
  • Audio Compression: G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps
  • Audio Mode: OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
  • Authentication for Audio: Level 1 only / Level 2 higher / All users
  • Total Bit Rate: 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
  • Supported Protocol: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6 / IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP
  • FTP Client: Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDHC/SD memory card is available.)
  • Multi-Screen: Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself)
  • Maximum Concurrent Access Number: Up to 14 (Depends on network conditions)
  • SDHC/SD Memory Card: H.264 recording: Manual REC / Alarm REC (PRE/Post) / Schedule REC / JPEG recording: Manual REC / Alarm REC (Post) / Backup upon network failure Compatible SD (SDHC) card: Panasonic 256 MB, 512MB, 1GB, 2 GB, 4 GB*, 8 GB*, 16GB*, 32GB* model *SDHC card
  • Alarm Source: 3x Terminal inputs, VMD, Command alarm
  • Alarm Actions: SD memory recording, E-mail notification, Indication on browser, Camera positioning, Preset position 1 ~ 64, FTP image transfer, Terminal output, Panasonic protocol output, Auto track
  • Alarm Log: With SD memory card: 5,000 logs, Without SD memory card: 1,000 logs
  • Schedule: Alarm/VMD/Access permission, Preset position call, Position refresh, H.264 recording
  • Monitor Output: NTSC-1.0 V [p-p] / 75 , NTSC composite ø3.5 mm mini jack, PAL- 1.0 V [p-p] / 75, PAL composite, ø3.5 mm mini jack
  • Microphone/Line Input: ø3.5 mm monaural mini jack, Input impedance: approx. 2 kΩ
  • Audio Output: ø3.5 mm stereo mini jack (monaural output) Line level
  • Output impedance: Approx. 600 Ω, Line level
  • External I/O Terminals: ALARM IN 1, ALARM IN 2 / ALARM OUT, ALARM IN 3 / AUX OUT (x1 each)
  • Safety/EMC Standard: NTSC-UL (UL60065), FCC (Part15 ClassA) C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA) / PAL- CE (EN60065, EN55022 ClassB, EN55024), GOST (GOST R 51558)
  • Power Source: 12 V DC, PoE (IEEE802.3af compliant)
  • Power Consumption: 12 V DC : 690 mA, PoE 48 V : 10 W / 190 mA (Class 0 device)
  • Ambient Operating Temperature: –10 °C ~ +50 °C (14 °F ~ 122 °F)
  • Humidity: 90% or less (whitout condensation)
  • Dimensions: ø115 mm x 155 mm (H) (ø4-17/32" x 6-3/32" (H)) (excluding the 12 V DC power cord plug)
  • Mass (approx.): 900 g (1.99 lbs.)
