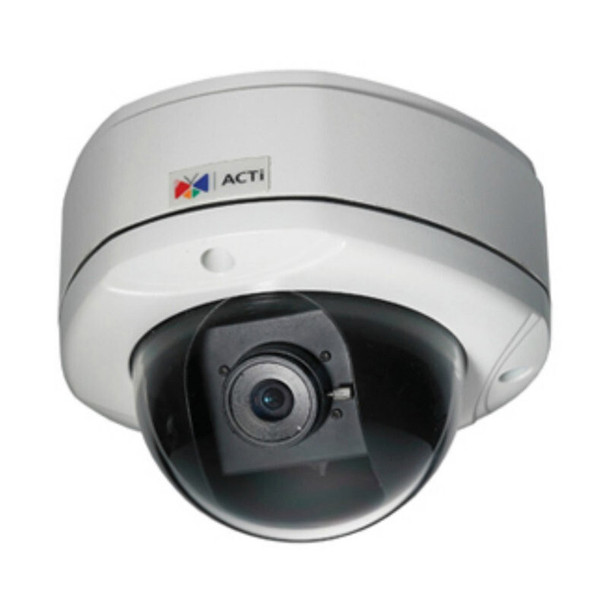

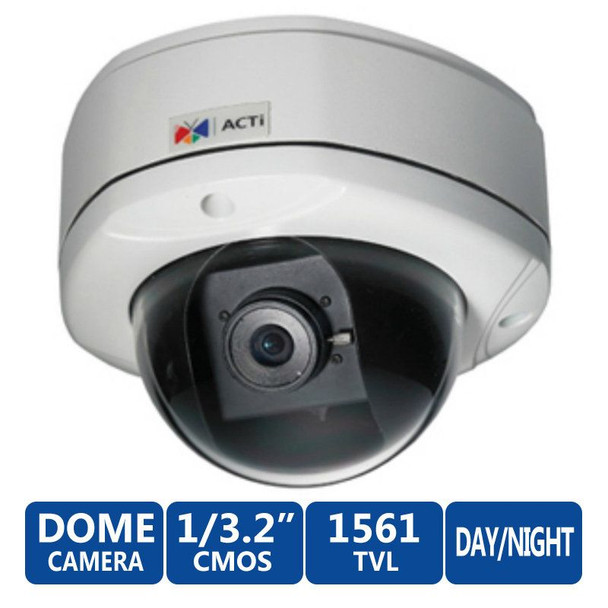

ACTi KCM-7111 Outdoor 4MP Fixed Dome Security Camera - 2.8mm Fixed Lens, 1080p, Weatherproof, Vandal Proof

KCM-7111
Save
34%
ACTi KCM-7111 Outdoor 4MP Fixed Dome Security Camera - 2.8mm Fixed Lens, 1080p, Weatherproof, Vandal Proof
Hover on image to enlarge
$771.00
$508.00
You save: $263.00 (34%)
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Frequently bought together

Description

ACTi KCM-7111 Outdoor 4 Megapixel Dome Security Camera dome camera ACTi KCM-7111 Outdoor 4 Megapixel Dome Security Camera 2 way audio
ACTi KCM-7111 Outdoor 4 Megapixel Dome Security Camera vandal proof ACTi KCM-7111 Outdoor 4 Megapixel Dome Security Camera IP66

ACTi KCM-7111 Outdoor 4MP Fixed& Dome Security Camera
The ACTi KCM-7111 Outdoor 4 Megapixel Dome Security Camera is built to withstand harsh environments and high security applications. It is a fixed-dome camera capable of both day and night function and offers features that make it ideal for both indoor and outdoor operation. IP66-rated, the camera is both vandal and weatherproof, capable of operating in temperatures ranging from -22°F to 122°F. Powered by Power over Ethernet technology and capable of motion detection, it can be used in even the most remote locations. Not only can it be mounted on a wall or ceiling, but it can also be placed on a pole, in a corner or even hung as a pendant camera.

The KCM-7111 is capable of creating up to 4 cropped regions as independent channels and features two-way audio, allowing you to focus on specific surveillance areas while also communicating with anyone located in the area. It also features video motion detection and can monitor three regions for motion detection in a single view mode, effectively monitoring several areas with just one camera. With a resolution of 2032 x 1920 at 8 fps, it can capture quality images from virtually any vantage point. Its IR cut filter system, allows the camera to capture color recordings in light levels as low as 0.1 lux at F2.0 and black and white recordings in light levels as low as 0.05 lux at F2.0 with an IR sensitivity range of 700 to 1100 nm. Other features packed into the KCM-7111 are Two Way Audio, MicroSDHC / MircoSD Local Storage, Digital Inputs/Outputs as well as PoE Power Over Ethernet. All this makes the ACTi KCM-7111 Outdoor 4 Megapixel Dome Security Camera Network, the ideal solution for Day Night Video Surveillance in nearly any security systems application.

Key Features of the ACTi KCM-7111 Outdoor& 4MP Fixed& Dome Security Camera

  • IR cut filter: true day/night functionality
  • Micro SD/SDHC slot: local storage and back-up
  • 2-way Audio: communication between location and command center
  • Progressive scan CMOS: captures still and moving images
  • WDR: captures images in varied light conditions
  • IP66 rated: protection against ingress of dust and powerful jets of water
  • PoE: only a single cable is required for power and data transfer over the network
acti kcm-7111 outdoor 4 megapixel dome security camera
acti kcm-7111 outdoor 4 megapixel dome security camera>
Features

Manufacturer:
ACTi
Product Type:
Cameras
Warranty:
3-year Manufacturer Warranty
Color:
White
Environmental:
Outdoor
Discontinued:
no

Security Camera Features

Lens Size:
2.8mm
Lens Type :
Fixed Lens
Resolution:
4MP
Technology:
Network (IP)
Camera Style:
  • Dome
Technical Specs

ACTi KCM-7111 Outdoor 4 Megapixel Dome Security Camera Specifications

  • Device Type: Fixed Dome Camera
  • Image Sensor: Progressive Scan CMOS
  • Sensor Size: 1/3.2 “ (4.5 x 3.4 mm)
  • Horizontal Resolution: 1561 TVL
  • Day / Night: Yes
  • Superior Low Light Sensitivity: Yes
  • Minimum Illumination: Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0.05 lux at F2.0 (30 IRE, 2400°K)
  • Color to B/W switch: ISP based switch, configurable
  • Mechanical IR Cut Filter: Yes
  • IR Sensitivity Range: 700 - 1100 nm
  • Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
  • Focal Length / Aperture: Fixed focal, f2.8 mm / F2.0
  • Iris: Fixed iris
  • Focus: Manual Focus
  • Mount Type: CS Mount
  • Horizontal Viewing Angle: 82.6°
  • Viewing Angle Adjustment: Pan: 0° - 350°; Tilt: 0° - 180°; Rotate: 0° - 350°
  • Compression: H.264, MPEG-4 SP, MJPEG
  • Maximum Frame Rate vs. Resolution (H.264, MJPEG): 8 fps at 2032 X 1920; 15 fps at 1920 X 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
  • Maximum Frame Rate vs. Resolution (MPEG-4 SP): 5 fps at 2032 X 1920; 11 fps at 1920 X 1080; 25 fps at 1280 x 720; 30 fps at 640 x 480
  • 4 Cropped VGA Mode (All Compressions): 15 fps at 640 x 480 (VGA)
  • Bit Rate: 28 Kbps - 6 Mbps (per stream)
  • Bit Rate Mode: Constant, Variable
  • Image Enhancement: White balance: automatic, hold and manual; Brightness; Contrast; Automatic gain control; Digital noise reduction; Flickerless
  • Privacy Masks: 4 configurable regions
  • Text Overlay: User defined text on video
  • Image Orientation: Image flip and mirror
  • Compression: 8 kHz, Mono, PCM, 16 bit encoding; G.711
  • Audio-In: Terminal block
  • Audio-Out: Terminal block
  • Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • Ethernet Port: 1, Ethernet (10/100 Base-T), RJ-45 connector
  • Security: IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
  • Alarm Trigger: Video motion detection 3 regions in single view mode, 1 region each in 4 cropped VGA mode; External device through digital input
  • Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
  • Digital Input: 2, terminal block
  • Digital Output :2, terminal block
  • Local Storage: MicroSDHC memory card slot (card not included)
  • Power Source: PoE Class 3 (IEEE802.3af)
  • Consumption: 10.08W
  • DC: 12V / 8.28W (adapter not included)
  • Weight: 1415 g (3.12 lb)
  • Dimensions (Ø x H): 151.69 mm x 114.9 mm (5.97" x 4.52")
  • Environmental Casing: Weatherproof (IP66 rated); Transparent vandal proof dome cover, up to 659.23 kgF (1453.35 lbF)
  • Mount Type: Surface, Pendant, Wall, Corner, Pole, Flush
  • Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
  • Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
  • Operating Humidity: 10% ~ 85% RH
  • Approvals: CE (EN 55022 Class A, EN 55024), FCC (Part15 Subpart B Class A), IP66
  • Unified Solution: Fully compatible with ACTi software
  • ISV Integration: Software Development Kit (SDK) available; ONVIF Compliant
  • Firmware Access: Browser Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
Datasheets

KCM-7111 (acti-KCM-7111-specsheet-A1.pdf, 1,156 Kb) [Download]
