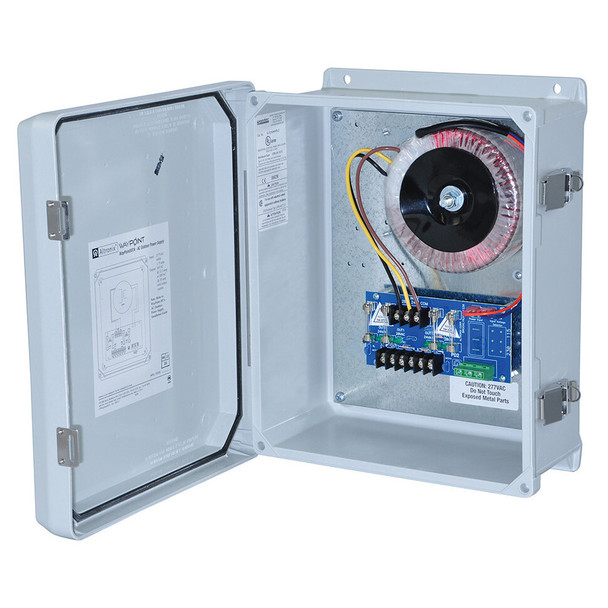

Altronix WAYPOINT307A 2 Fused Outputs Outdoor CCTV Power Supply

Altronix WAYPOINT307A 2 Fused Outputs Outdoor CCTV Power Supply

WayPoint-307A Outdoor Power Supply provides 24VAC and/or 28VAC distributed via two outputs for powering CCTV Cameras, heaters and other video accessories.

CCTV Power Supply, Outdoor, 2 Fused Outputs, 24/28VAC @ 12.5A, 277VAC, WP3 Enclosure

Key Features:

• Input

  • Input: 277VAC, 60Hz, 1.75A.

• Output

  • Output options:

    • a. 24VAC @ 12.5A max.
    • b. 28VAC @ 10A max.
    • c. Both 24VAC and 28VAC not to exceed 10A max.
  • Output fuses rated @ 15A 32V.

• Features

  • Individual power output LEDs.
  • Spare fuses included.

• Temperature

  • Operating Temperature: - 20º C to 50º C ( -4º F to 122º F).
  • Storage Temperature: -40ºC to 70ºC ( -40ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.): 154 BTU/Hr.
  • System AC input VA requirement: 484.75VA.
