Bosch DVR-650-08A200 8ch DVR Digital Video Recorder (2TB)

Bosch DVR-650-08A200 8ch DVR Digital Video Recorder (2TB)

The Bosch DVR-650-08A200 8ch DVR Digital Video Recorder (2TB) lets you record multiple video and audio signals, and also allows you to view and play them at the same time. It makes use of H.264 compression technology that minimizes the file size of video files without deteriorating the image quality. The recorded videos can be viewed at a resolution of up to 1440 x 900 pixels.

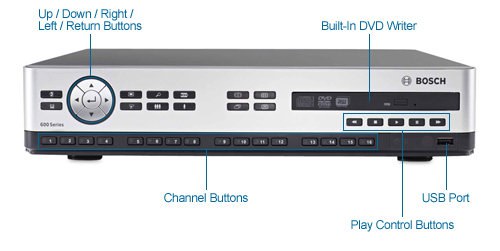

The built-in monitor outputs deliver full-screen, quad and multi-screen viewing modes. You can easily operate the recorder with the on-screen display menu, mouse, IntuiKey Series keyboard or the supplied remote control. This Bosch DVR-650-08A200 8ch DVR Digital Video Recorder (2 TB) can be controlled using the Control Center PC software to allow easy live viewing, playback and configuration. And, the recorded videos can be archived with the use of USB port or via the built-in DVD writer. It supports Real Time Streaming Protocol (RTSP) to ensure that the configured mobile devices can play live videos over the Internet.

Key Features of Bosch DVR-650-08A200 8ch DVR Digital Video Recorder (2 TB)

• 2 TB Storage: ensures ample storage space for saving the video files
• H.264 compression technology: reduces video file sizes without compromising on the quality
• Search and playback functions: quickly access recorded video
• Embedded design: reduce maintenance and operational costs
• Archive player: viewing secure video files

Bosch DVR-650-08A200 8ch DVR Digital Video Recorder (2 TB) Specifications

• Operating system: Windows XP, Windows Vista or Windows 7
• Web browser: Internet Explorer 7, 8 or 9
• Processor: Intel Core Duo 2.0GHz or comparable
• RAM memory: 2048 MB
• Free disk space: 10 MB
• Graphics card: NVIDIA GeForce 8600 or better
• Video memory: 256 MB
• Network interface: 10/100-BaseT
• External power adapter AC input: 110-240 VAC; 50/60 Hz; 1.8 A
• External power adapter DC output: 12VDC; 5 A
• DVR Power input: 12VDC; 3.5 A; 145 BTU/h
• Inputs: Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
• AGC: Automatic gain adjustment for each video input
• Hard Disks: Supports up to 2 SATA hard drives maximum 2TB each
• Record Rate (IPS) NTSC: Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
• Record Rate (IPS) PAL: Max. 25 IPS per channel, configurable: 25, 12.5, 6.25, 5, 2.5, 1
• Recording Quality: Best, High, Normal, Low, Lowest
• Average Recording Capacity CIF, Normal, 25/30 IPS: PAL-138 hours, NTSC-170 hours
• Average Recording Capacity CIF, Normal, 6.25/7.5 IPS: PAL-350 hours, NTSC-425 hours
• Average Recording Capacity 2CIF, Normal, 12.5/15 IPS: PAL-115 hours, NTSC-144 hour
• Average Recording Capacity 4CIF, Normal, 6.25/7.5 IPS: PAL- 93 hours, NTSC-115 hours
• Maximum recording rates Local 16 channels 4CIF: PAL-6 IPS, NTSC-7.5 IPS
• Maximum recording rates Local 16 channels 2CIF: PAL-12.5 IPS, NTSC- 15 IPS
• Maximum recording rates Local 16 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 8 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
• Maximum recording rates Local 8 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 8 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 4 channels 4CIF: PAL-12.5 IPS, NTSC-15 IPS
• Maximum recording rates Local 4 channels 2CIF: PAL-25 IPS, NTSC-30 IPS
• Maximum recording rates Local 4 channels CIF: PAL-25 IPS, NTSC-30 IPS
• Remote (network) 16 channels CIF: PAL-6.75 IPS, NTSC-7.5 IPS
• Remote (network) 8 channels CIF: PAL-12.5 IPS, NTSC-15 IPS
• Video Outputs Monitor: A-VGA RGB, Monitor B-VGA RGB
• Live Resolution (Mon.A): 800x600 (4:3), 1024x768 (4:3), 1280x1024 (5:4), 1366x768 (16:9), 1440x900 (16:10)
• Digital Zoom: 2 times
• Streaming video: H.264 compression
• Audio Inputs: Mono RCA, 1.0 Vpp
• Audio Output: Mono RCA, 1.0 Vpp
• Compression: ADPCM
• Sample rate: 16 kHz per channel
• Bit rate: 8-bit
• Inputs: 8 or 16 inputs configurable NO/NC, max. input voltage 15 VDC
• Outputs: 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
• RS485: Output signals according to RS485, max. signal voltage -8 to +12 V
• RS485 Support: Bosch domes, and Pelco P and D
• Video Inputs: 8 or 16 looping BNC, auto termination
• Monitor: 2 VGA D-SUB
• Alarm connectors: Screw terminal inputs, cable diameter AWG26‑16 (0.13-1.5 mm)
• Audio Inputs: 4 RCA (CINCH)
• Audio Output: 2 RCA (CINCH)
• Ethernet: RJ45, 10/100 BaseT according to IEEE802.3
• RS485: Screw terminal output, cable diameter AWG28‑16 (0.08-1.5 mm)
• USB 2.0: One front and one rear USB connector for mouse or USB memory device
• Display Modes Monitor A: Full, quad, multi-screen (live and playback), full sequence, alarm call-up (live)
• Display Modes Monitor B: Full, quad, multi-screen, full sequence, alarm call-up (live)
• Normal partition: Continuous recording (with or without overwriting)
• Event partition: Input and motion recording (with or without overwriting)
• Dimensions (WxDxH): 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in) excluding cabling
• Weight: 4.3 kg (9.46 lb) approx.
• Temperature Operating: +0°C to +40°C (+32°F to +104°F)
• Temperature Storage: -40°C to +70°C (-40°F to +158°F)
• Humidity Operating: <93% non-condensing
• Humidity Storage: <95% non-condensing
