| Network camera |
| Inputs | Max. 8CH |
| Resolution | 8MP ~ CIF |
| Protocols | Wisenet, ONVIF |
| Decoding |
| Resolution | 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(120fps), 720p(120fps), D1(120fps) |
| Performance |
|---|
| Record |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 80Mbps |
| Resolution | 8MP ~ CIF |
| Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post) |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus), G-Sensor(3 Axis) |
| Event Action | e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Search & Play |
| Playback Bandwidth | Max. 32Mbps(8CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | Max. 8CH(Local Monitor, Network) |
| Fisheye Dewarping | WEB / CMS |
| Storage |
| Supported HDD | Up to 4TB |
| HDD Slot | SATA 2ea
- Max. 2TB(HDD, Non-RAID Mode)
- Max. 4TB(SSD, NON-RAID Mode) |
| RAID | RAID-1 |
| Backup |
| File backup | Exe(GUI), JPG/AVI(Network, excluding GPS information) |
| Function | Multi channel(Upto 8CH) Play, Date-Time/Title/GPS display |
| Network |
|---|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Wisenet DDNS |
| Transmission Bandwidth | Max. 80Mbps |
| Audio |
| Input/Output | 8 ch (network) |
| Compression | G.711, G.726, AAC(16/48KHz) |
| Audio Communication | 2-Way |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | IP address filtering, User access Log, 802.1x, Encryption |
| Web viewer |
| Supported OS | Window 7, 8, 10, Mac OS X(10.8 or above) |
| Supported browser | MS IE, Google Chrome, Mac Safari |
| Viewer Software | TMS, Webviewer |
| Functions |
|---|
| Camera Setup |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ |
| Control | Via GUI, Webviewer |
| Smart phone |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Control | Live(Multi-Profile Support), Playback |
| Max. Remote Users | Search(3), Live Unicast(10) |
| Interface |
|---|
| HDMI | 1EA |
| VGA | 1EA |
| Audio | Out(1EA, Line) |
| Ethernet | RJ-45(10/100/1000BASE-T) x 1
RJ-45(PoE) x 8 |
| Alarm | In 6EA, Out 4EA |
| USB | 3 EA (2 Front, 1 Rear) |
| GPS | 4 Pin Micro Fit |
| WiFi | 1 EA (RP-SMA, F) |
| Serial(Protocols) | 1 RS-232C(Reserved) |
| Power inlet | 6pin connector 1ea |
| System |
|---|
| System Control | Mouse, Web, Controller |
| Power Management |
| Shutdown Delay | Max. 72Hrs (User selectable) |
| Startup Delay | 0(Default) sec ~ 10 Min (User selectable) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
| Environmental |
|---|
| Operating Temperature | -25 to +55 °C(-13 to +131 °F) : HDD installed |
| Operating Humidity | 20% ~ 85% RH |
| Certification | CE, FCC, UL, KC
EN-50155 (Rail Shock/Vib)
EN-50121-3 (Railway EMC)
EN-61373 (Railway Safety) |
| Electrical |
|---|
| Power Input | 9 ~ 36V DC |
| Power Consumption | Max. 122W |
| PoE Budget | Max. 64W |
| Mechanical |
|---|
| Color / Material | Black / Steel |
| Dimension (WxHxD) | 210 x 80 x 250 mm (8.27" x 3.15" x 9.84") |
| Weight | Approx 3.4Kg(7.5lb) |
| Control Box |
|---|
| Interface |
| Indicator | LED(Status indicator) : 6EA
- Power(1), Alarm(1), Record(1), GPS(1), RAID(1), HDD Error(1) |
| Emergency Button | 1 EA |
| Audio/Power Switch | Out(1EA, RCA, Line) |
| Main I/O | 1EA (DB9) |
| Mechanical |
| Color / Material | Black / Steel |
| Dimension (WxHxD) | 118 x 29.2 x 70mm (4.64" x 1.15" x 2.75") |
| Weight | 0.2Kg |
Free Shipping

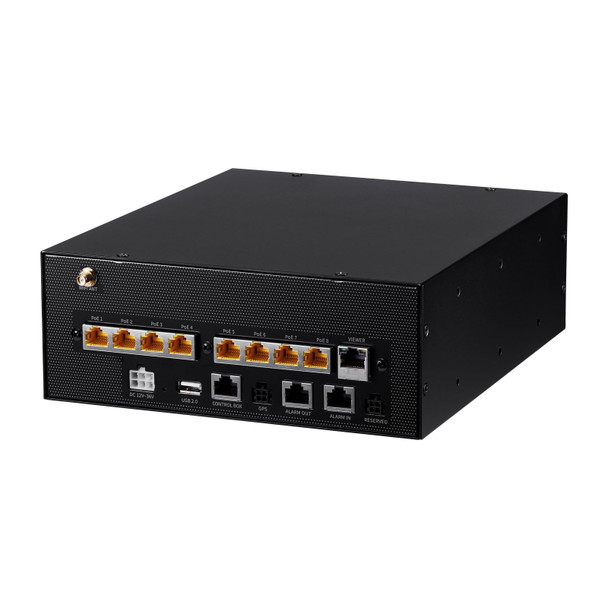

Network Video Recorder (NVR)
