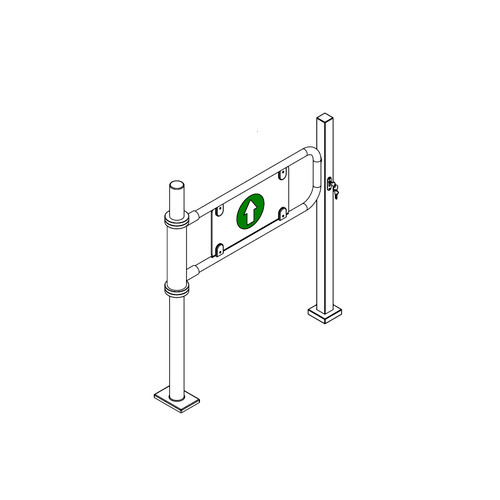

SWG-28 Swing Gate Turnstile

Swing Gate Turnstiles motorized mechanism allows them to be used in various locations. SWG-28 has a longer arm compared to 3 armed turnstiles and also provides a better flowing pedestrian traffic especially for the ones who carry lagguages. Aktuel SWG-28’s both directional motorized function ensures to control the direction of pedestrian traffic. SWG-28’s Swing Gates have 0.4-0.6″ (10-15mm) thick Plexiglas-stainless steel arms which are strong enough for impacts, provides up to 36″ (90cm) passege width which is compatible with international wheel chair standarts.

Aktuel SWG-28 Series are compatible with AKT-28 Series which ensures a better and full access control with an aesthetic and user friendly way.

  • Provides a better pedestrian traffic compared to 3 armed turnstiles
  • Both directional motorised function
  • Wide passage with up to 36″ (90cm)
  • Impact proof Plexiglas 0.4-0.6″ (10-15mm)
  • Stainless steel arms
  • Aesthetic and user friendly

A1 Security Cameras
Product Type:
Access Control

Turnstile Features

Optional RS-232 Control:
Turnstile Type:
Swing Gate
Technical Specs


  • Main body manufactured from 1.5 mm 304-grade stainless steel (SWG-15 and SWG-28 Series)
  • Main body manufactured from 3 mm 304-grade stainless steel (SWG-170 Series)
  • Top lid is made from standard 3 mm plexiglass (SWG-15 Series)
  • Optionally, “Stop”, “Pass”, “Disabled” signs can be printed on the Plexiglas arm.
  • All other parts are electro galvanized against corrosion.


  • In order to avoid risk of electric shock, the control power is 24VDC (Max 30W)
  • Compatible with all access control systems that provide dry contact or TTL CMOS 5-48V control grounding outputs.
  • Operating Temperature -20°C / + 68°C (0°F / + 130°F)
  • Main movement mechanism is provided by a 24VDC motor.
  • Motor start and stop control is maintained by PWM microprocessor control system.
  • Swing Gate Turnstile, automatically closes and locks itself after an adjustable time period.
