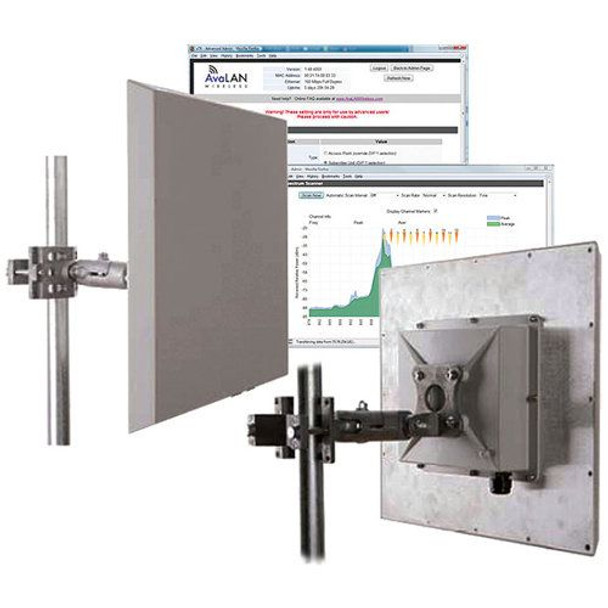

The Avalan AW900xTP-PAIR 900MHz Outdoor Wireless Network Bridge System features the popular Avalan xTR series radio technology integrated with a high gain 12.5 dBi flat panel antenna. This provides a rugged, weatherproof and easily mounted combination package for those wireless network applications that can benefit from the increased range and decreased interference that a directional signal provides. The Avalan AW900xTP-PAIR 900 MHz Wireless Network Bridge System includes a built-in spectrum analyzer and is IP addressable with web browser based remote configuration and diagnostic tools included.
The Avalan AW900xTP-PAIR allows users to build a non-line-of-sight, point-to-point or point-to-multipoint (with additional AW900xTP Radios*) wireless Ethernet link that can connect “fringe” IP devices, including IP access control readers, remote printers, remote PCs, VoIP phones, point-of-sale devices, digital signage or industrial control devices as well as Network Security Cameras. Obviously a point-to-multipoint application will require an omni-directional access point such as the Avalan AW900xTR in order to receive signals from AW900xTP clients dispersed at multiple angles.
The Avalan AW900xTP-PAIR 900MHz Outdoor Wireless Network Bridge System are an ideal replacement for modest data rate installations where 802.11 wireless systems are under-performing or failing completely due to insufficient range or excessive interference. AvaLAN’s Wireless products offer the ideal combination of price, range, data rate, security, interference avoidance, quality-of-service, and a simple plug and play set up with minimal user programming required.

Avalan AW900xTP-PAIR Network Link Features:

• Rugged cast aluminum NEMA Enclosure combined with a high gain 12.5 dBi flat panel antenna
• Ready to install and use
• 17.7″ square, pole-mount bracket included
• Built-in spectrum analyzer
• 128 bit AES encryption, FIPS 197 - NIST Certified
• Remote diagnostics and link analysis with browser interface
• Radio can be configured as an access point or client
• Simple plug and play — minimal user programming required
• Install up to 16 clients per access point
• Can operate up to 12 access points, each on its own non-overlapping channel
• Does not require an FCC license to operate or install
• High RF output power provides maximum foliage and / or wall penetration
• Non Line of Sight NLOS ready
• Line-of-sight range up to 25 miles
• Available as single radios for integrating multi-point systems

Contents:

(2) Integrated Radio & Panel Antenna Units
(2) AW-POE Power Over Ethernet Injectors
(2) 110 VAC to 12 VDC power adapters
