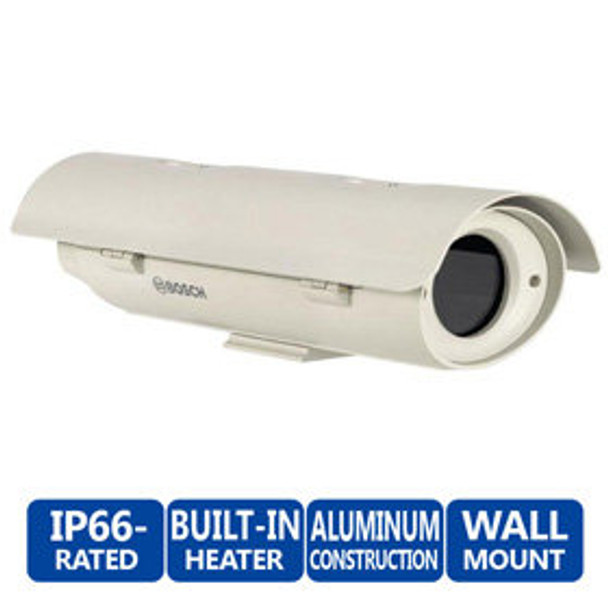

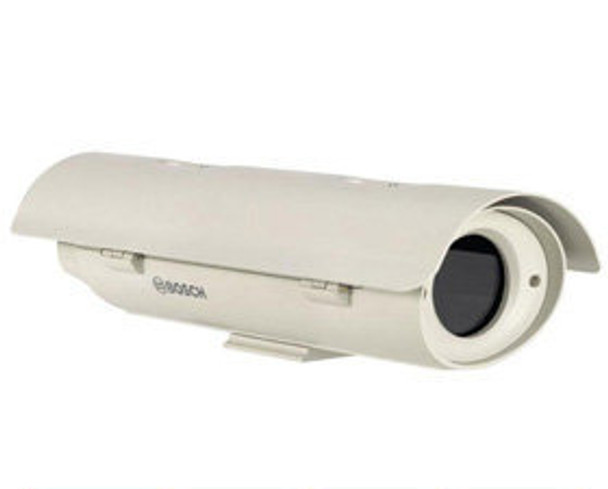

Bosch UHO series housings are smartly styled housings, for outdoor use. These housings are both cost-competitive and installer-friendly. Models are available for use with 24 VAC (UHO-HBGS-10,UHO-HBPS-10), 115 VAC, and 230 VAC cameras, to fit a wide range of applications. The New Bosch UHO-HBPS-10 is the perfect high quality universal housing for Security Cameras and lens up to 10.3" in length.

Functions

Easy installation

The unique, hinged, side-opening design provides easy installation of all camera/lens combinations, and allows access to most camera and lens controls when the housing is mounted. Power, video, and lens control cabling can be routed through liquid-tight fittings in the bottom rear of the housing, or for even better cable management, via the feedthrough entry holes in the base. Mounting holes in the base permit installation to a wide range of pan/tilts, adjustable heads, and various camera mount brackets.

Flexible

External 4-pin and BNC connectors for power and video, located in the rear end cap, are also available on 24 VAC and 230 VAC models. These aluminum-constructed housings are available with a factory-installed heater and blower. The heater maintains the internal temperature of the housing in
cold temperature conditions as low as -40 °C (-40 °F). In combination with a permanent low-power window defroster and a continuous-duty blower, the unit minimizes fogging in high humidity locations, and extends the
temperature limits. Sunshields are included on all outdoor models.

Dinion ready

All models support installation of Dinion style cameras with fixed focal, varifocal, or up to a 15x motorized zoom lens.

Secure

For increased security, the units come with tamperresistant screws for the locking clasps to prevent illegitimate access to the housing contents.

Rugged

With a sleek design that meets IP66 and NEMA-4X enclosure standards, the UHO Series Housings from Bosch are the optimal solution for protecting your video surveillance equipment from adverse elements.

UHO-HBGS-10 Product Details:

• Protects camera/lens combinations up to 262 mm (10.3 inch) length
• Hinged side opening for easy installation and camera setup
• IP66, NEMA 4X enclosure rating
• Strong aluminum construction
• Sunshield included
• Cable routing through base or rear of housing
• Tamper-resistant
• Continuous low power window defroster
• Self cleaning glass
• 24 VAC, 50/60 Hz heater & Blower
