ETS is a quality manufacturer of Sound Surveillance tm audio products for use with DVRs, I/P cameras, CCTV monitors (with built in speakers), one and two way remote monitoring equipment and accessories. ETS manufactures pre-amplified microphones, weather resistant microphones, audio amplifiers, audio switchers, audio mixers; sound activated audio switchers, speakers and DVR interface equipment. See below for details on the ETS SM5-EQ-PRO.

*Professional Grade, Single zone audio surveillance system for use where sound quality and recording of conversations is of critical importance. Includes microphone and Pre-amp / Equalizer/ Compressor / Limiter / DVR interface.*

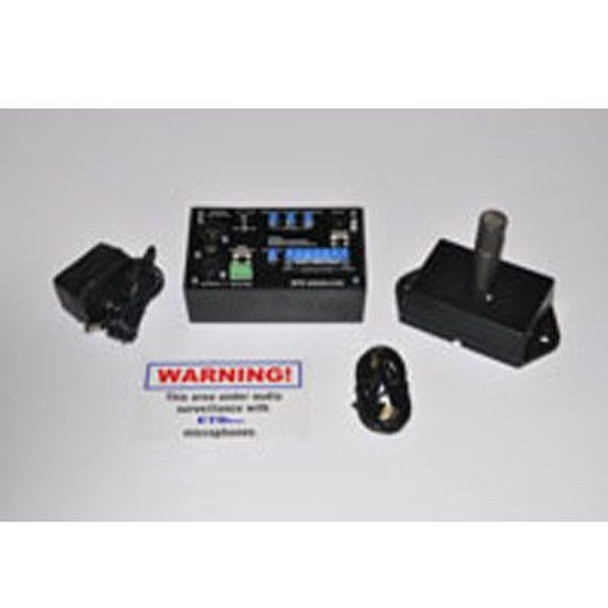

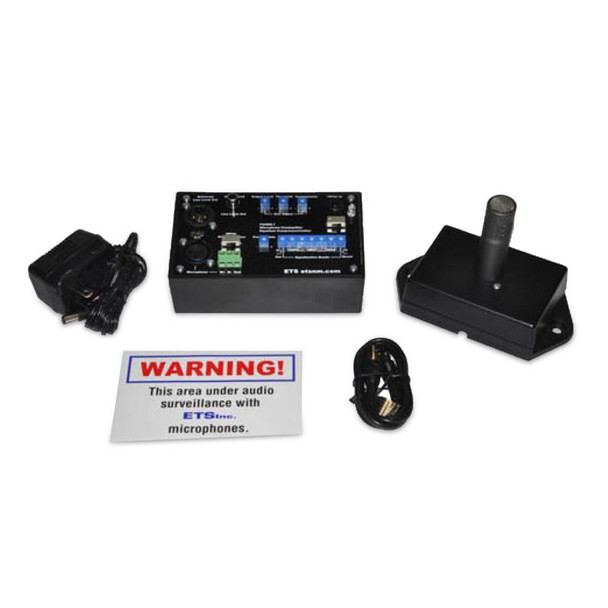

Kit Includes

• 1ea PCCM-1 Surface Mount Cardioid pattern microphone
• PACEQ-1 Pre-amp / Equalizer Compressor / DVR interface
• 6’ RCA or 3.5mm Patch cable.
• AC Adaptor
• Warning label.
• SM1 mounting screws.
• Installation instructions.

PCCM-1 Microphone Specifications

• Surfaces mount black (or white) plastic enclosure.
• Enclosure dimensions: L 5.1” W 2.7” H 1.4”
• XLR mounted microphone
• Recessed terminal strip for connecting cable.
• Back Electret Condenser cartridge
• Cardioid pickup pattern
• Frequency response 30hz-18Khz
• 48Vdc phantom powered
• Sensitivity –53db
• Impedance 200 Ohms
•  S/N ratio: better than 60db

PACEQ-1 Interface Specifications

• Microphone input connectors: XLR or direct wire terminal block.
• Ultra low noise microphone pre-amplifier
• Adjustable microphone pre-amp gain: 26db to 40db
• Input impedance 1K Ohms.
• Input: RFI and transient protected
• Integrated 48Vdc regulated phantom power supply
• Phantom power on/off switch
• Equalizer: 7 frequency band controls: 60hz, 150hz, 400hz, 1Khz, 2.5Khz, 6Khz, 15Khz. +/- 12db gain / cut for each frequency band.
• Equalizer on/off switch
• Built in Compressor/ peak limiter
• Threshold adjustment: –40 to 20db
• Compression ratio continuously variable between 1:1 and Infinity:1
• Two line level outputs: XLR balanced and RCA (or 3.5mm) unbalanced.
• Output level control: +/- 20db
• Outputs short circuit protected.
• Output impedance: 100 Ohms.
• S/N ratio: better than 60db (EQ off)
• Frequency response 20HZ-30Khz (EQ. off) THD: .001%@ 1 KHz.
• Power consumption, 30ma@12Vac.
• Auto-reset fused
• Power indicator
• Dimensions: L 5.3 x W 3.3 x H 1.6
