Bosch B6512K-C-920 96 Points Control Panel Kit with Medium Enclosure, Transformer and Keypad

Bosch B6512K-C-920 96 Points Control Panel Kit with B6512 Control Panel, B10 Medium Enclosure , CX4010 Transformer and B920 Keypad

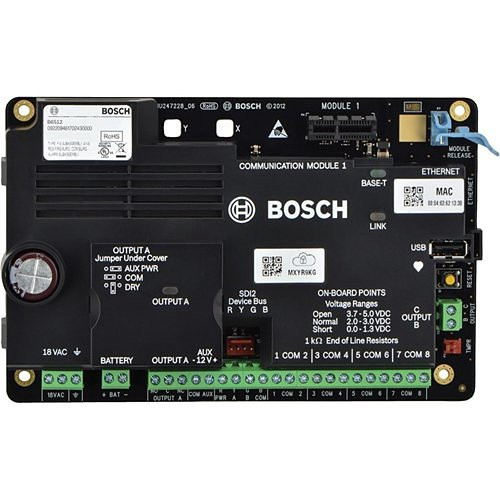

The B6512 integrates intrusion and residential fire, providing one simple user interface for both systems. The B6512 provides up to 96 individually identified points that can be split into 6 areas. The control panel can communicate through it's builtin Ethernet port, or through compatible plug-in modules that can send events over the public switched telephone network (PSTN) or over cellular network communications. With the B6512, you can monitor doors, windows, and motion within areas like showrooms or those that hold inventory. Each user can have a personalized passcode, a wireless keyfob, and a credential to control the system.

The B10 is a white enclosure made of cold-rolled steel that is 1.0 mm (20 gauge) thick.

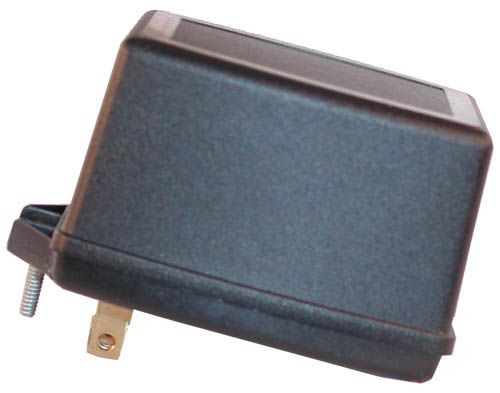

The CX4010 is for use in North America. It converts 110 VAC primary voltage input to 18 VAC, 22 VA secondary input.

The B920 Two-line Alphanumeric Keypad (SDI2) is a SDI2 bus compatible device. Each keypad has user adjustable options such as volume and display brightness. The B920 shows two-line system messages for all areas.

Key Features:

• Provides up to 96 points using a combination of hardwired or wireless devices for installation flexibility and up to 6 areas with perimeter and interior control
• Remote Security Control (RSC) app which allows users to control their security systems - and view system cameras - remotely from mobile devices such as phones and tablets
• Provides up to 4 access doors
