Description

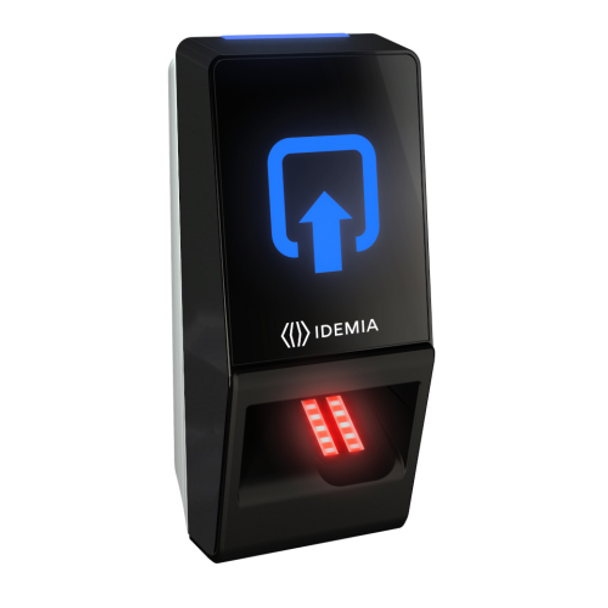

Bosch IDEMIA 293678615 MorphoAccess SIGMA Lite Biometric Access Device with LED Indicator, IP65
Engineered with the same attention to detail and performance as their predecessor, the MorphoAccess SIGMA Lite terminals are specifically designed to equip narrow mounting surfaces, such as glass/aluminum door mullions, turnstiles, or server rack doors. With two designs and multiple card reader options, there are a variety of models to address the widest range of deployment scenarios, both indoors and outdoors
Key Features:
- World's #1 fingerprint technology inside: 1:10,000 user identification in 1 second
- High capacity: 30,000 templates, 250,000 IDs in authorized user list, 1 Million logs
- Anti-fraud features: fake finger detection, duress finger, timed anti-pass back
- Flexibility: Prox®, iClass® or MIFARE®/DESFire®/NFC contactless card reader as an option
- Embedded web server
- Tough design: IP65 rated and vandal resistant (IK08)
- Compatible with Morpho and Bioscrypt existing installations
Downloads
Datasheet
Bosch-293678615-Datasheet-A1
Additional Information
|
Access Control Type:
|
Card Readers
|
|
Alternative SKUs:
|
F.01U.390.921
|
|
Card Compatibility:
|
Prox
iCLASS
MIFARE DESFire
|
|
Certifications:
|
RoHS
REACH
WEEE
|
|
Color:
|
Black
|
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
156 x 68 x 62 mm (6.14 x 2.68 x 2.44 in)
|
|
Durability:
|
Weatherproof
Vandal Resistant
|
|
Environmental:
|
Outdoor
Indoor
|
|
LED Indicator:
|
Status LED
|
|
Manufacturer Website:
|
https://www.boschsecurity.com/us/en/
|
|
Mounting:
|
Wall Mount
Surface Mount
|
|
Network Interface:
|
1x RJ-45
|
|
Power Supply:
|
12 to 24 VDC
PoE (IEEE 802.3af)
|
|
Processor (CPU):
|
ARM Cortex-A9 core 1Ghz
|
|
Product Series:
|
Bosch IDEMIA Series
|
|
Protection Code:
|
IP65
IK08
|
|
RAM:
|
512MB
|
|
Reader Type:
|
Fingerprint
Card
|
|
Serial Interface:
|
1x RS485
|
|
Technology:
|
Network (IP)
|
