Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector 40ft

ISC-BPR2-W12
Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector 40ft
Hover on image to enlarge
$25.28
+
  • Shipping Policy
  • Return Policy
  • Ask Question
Delivery
Payment options
fingerprintOur advantages

person Dedicated StaffDedicated Staff

people Free Presales SupportFree Presales Support

palette Free DesignFree Design

label_outline Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Frequently bought together

Description

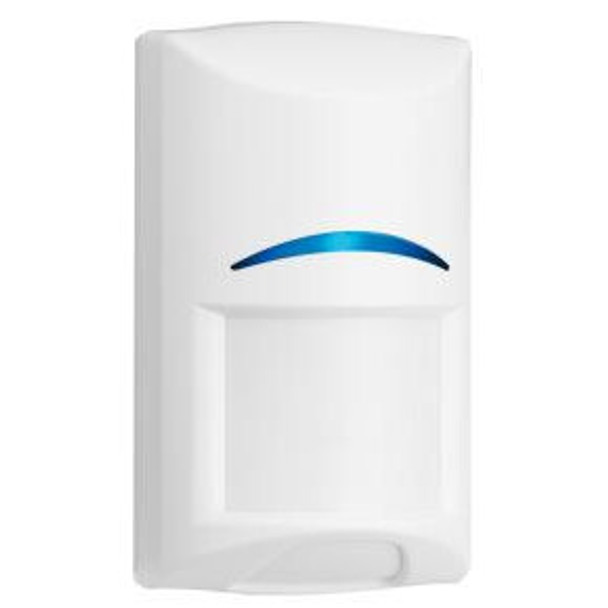

Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector

The Blue Line Gen2 PIR Motion Detectors (ISC-BPR2) use two Fresnel lenses designed to produce sharplyfocused images throughout the field of view providing superior response to intruders. These lenses provide a high density (77 zone) 7‑layer pattern, and the selectable lookdown lens provides an additional three lookdown zones. Easy installation and flexible mounting options provide state-of-the-art detection. The pet‑friendly (-WP) generates alarm signals for human intruders without generating false alarm signals for pets.

Key Features of Bosch ISC-BPR2-W12

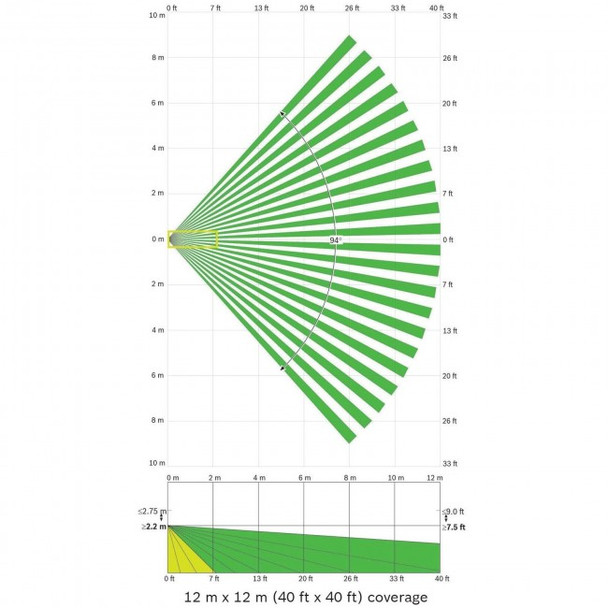

  • Wall to Wall coverage - Superior catch performance within 12 m x 12 m (40 ft x 40 ft) coverage area
  • Pet‑friendly Selectable model available - optimize installation for pet (20 kg [45 lb]) and non‑pet applications
  • Dynamic Temperature Compensation - superior catch performance in any environment
  • Flexible Mounting Height, No Adjustments - reduce installation time and false alarms, improve catch performance

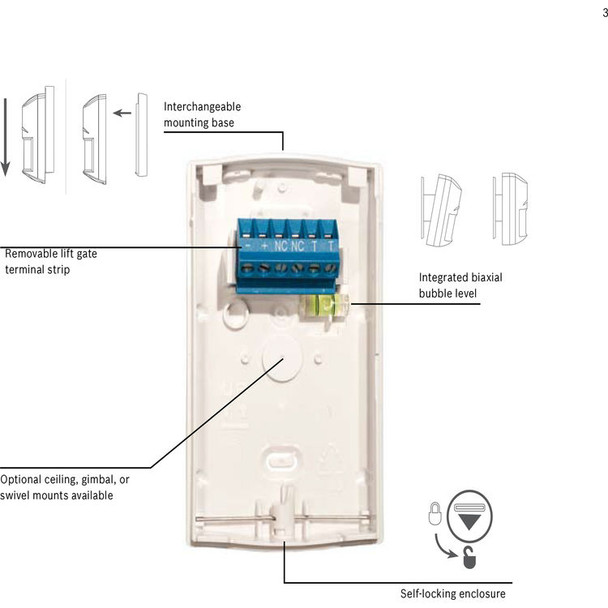

  • Self-locking Enclosure with Integrated Bubble Level - reduce installation time
Compatible Products:
Features

Manufacturer:
Bosch
Product Type:
Accessories
Color:
White
Accessory Type:
Motion Detector
Discontinued:
no
Technical Specs

Current (standby/alarm): 10 mA at 12 VDC
Voltage (operating): 9 VDC to 15 VDC
Environment Complies with EN50130-5 Class II
Pet Immunity1: One or two pets up to 20 kg (45 lb) or numerous rodents.
Relative Humidity: 0 to 95%, non-condensing For UL Listed product installations, 0 to 85%, non-condensing
Temperature (operating): -30°C to +55°C (-20°F to +130°F) For UL Listed product installations, 0°C to +49°C (+32°F to +120°F)
Color: white
Dimensions: 105 mm x 61 mm x 44 mm (4.2 in. x 2.4 in. x 1.7 in.)
Material: High-impact ABS plastic
Radio Frequency Interference (RFI) Immunity No alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less than 30 V/m.
Relay: Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
Datasheets

Specsheet (bosch-BlueLine_Gen_2_Data_sheet_enUS_2603228171-A1.pdf, 951 Kb) [Download]

Installation Guide (bosch-BlueLine_Gen_2_W12_Installation_Manual_enUS_2603159435-A1.pdf, 955 Kb) [Download]
