Description

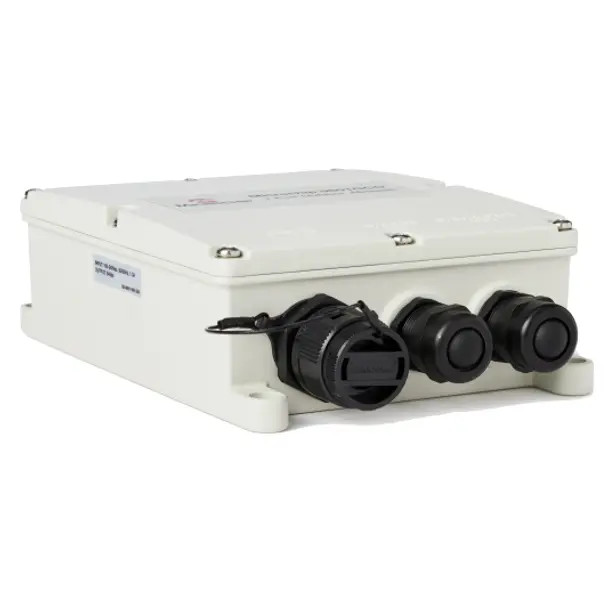

Bosch NPD-9001-EBT Midspan
The Bosch NPD-9001-EBT is a high-performance 90W IEEE 802.3bt Type 4 compliant PoE midspan specifically engineered for demanding outdoor installations with IP67 weatherproof protection and TAA (Trade Agreements Act) compliance. This robust power solution enables remote PoE power delivery for compatible IP PTZ cameras in challenging outdoor environments while providing integrated 6kV surge protection for both AC and PoE ports to safeguard expensive indoor equipment.
Designed for worldwide deployment with TAA compliance for government installations, this outdoor midspan features a single part number with AC connector compatibility across different regions. The IP67-rated enclosure with NEMA 4X certification ensures reliable operation in harsh weather conditions, while the advanced surge protection meets GR-1089-CORE Issue 6 and ITU-T K.21 enhanced surge level protection standards. Operating temperature range extends from -40°F to 140°F (-40°C to 60°C), making it ideal for extreme climate installations requiring domestic sourcing compliance.
Key Features:
- 90W power output with IEEE 802.3bt Type 4 compliance
- IP67 weatherproof protection with NEMA 4X rating
- TAA (Trade Agreements Act) compliant for government installations
- Integrated 6kV surge protection on AC and PoE ports
- Extended operating temperature: -40°F to 140°F (-40°C to 60°C)
- 100-240VAC input with worldwide AC connector compatibility
- Includes waterproof gland for secure cable entry
- 187,000 hour MTBF reliability at 77°F (25°C)
- Supports altitudes up to 6,560 feet (2,000 meters)
- ASTM B-117 corrosion resistance for marine environments
Downloads
Popular Search
Additional Information
|
Accessory Type:
|
Midspan
|
|
Compliance:
|
TAA (Trade Agreements Act)
|
|
Environmental:
|
Outdoor
|
|
Power Supply:
|
100 to 240 V AC
|
|
Protection Code:
|
IP67
|
|
Storage Temperature:
|
-40 °C to 85 °C (-40 °F to 185 °F)
|
