Bosch UHO-HBGS-11 Outdoor Housing

Brand: Bosch
Part Number: UHO-HBGS-11
Write a Review

Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Color : White
  • Environmental : Outdoor

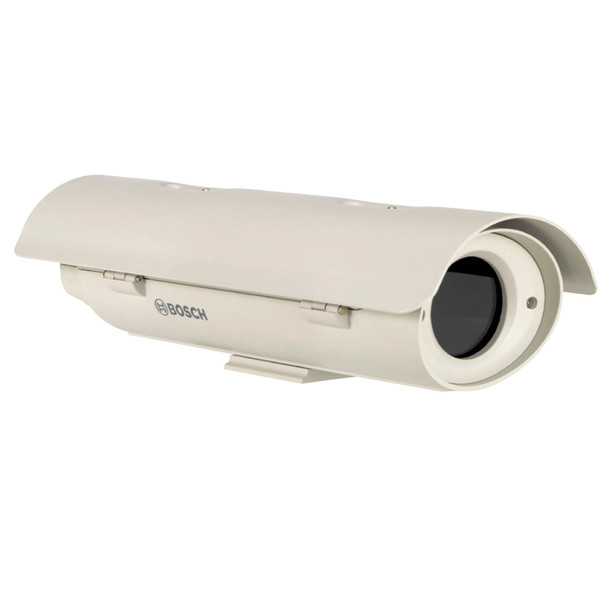

Bosch UHO-HBGS-11 Outdoor Housing

The UHO camera housings are smartly styled enclosures that enable you to use the DINION family of cameras in an outdoor environment or in areas where the cameras need to be protected. Models are available for use with 24 VAC, 120 VAC, and 230 VAC power supplies. Depending on the version, they can be used with 12VDC, 24 VAC, 120 VAC, and 230 VAC cameras.

The hinged, side-opening design allows easy installation of camera/lens combinations, and gives access to the controls even when the housing is mounted. Power and video cabling can be routed through feed-through fittings or external 4-pin power and BNC connectors at the rear of the housing. Feedthrough entry holes are available in the base of some models for even better cable management. Mounting holes in the base can be used to install the housing on a wide range of pan/tilts, adjustable heads, and various camera mount brackets.

With a sleek design that meets IP66 and NEMA-4X standards, the housings are the ideal solution for protecting your video surveillance equipment from adverse elements.

Key features:

  • Protects camera/lens combinations up to 262 mm (10.32 inch) in length
  • Hinged side opening for easy installation and camera setup
  • IP66, NEMA-4X rating
  • Sunshield included
  • Window defroster with self-cleaning glass
  • For (24 VAC / 12VDC) cameras
  • 24 VAC power supply
  • Blower; Feed-through cabling
  • Dimension 126.5 x 171.3 x 480 mm (5 x 6.7 x 18.9 in.) including sunshield


Additional Information

Accessory Type:
Housing Enclosure
Alternative SKUs:
NDAA Compliance:
NDAA Compliant
3-year Manufacturer Warranty
