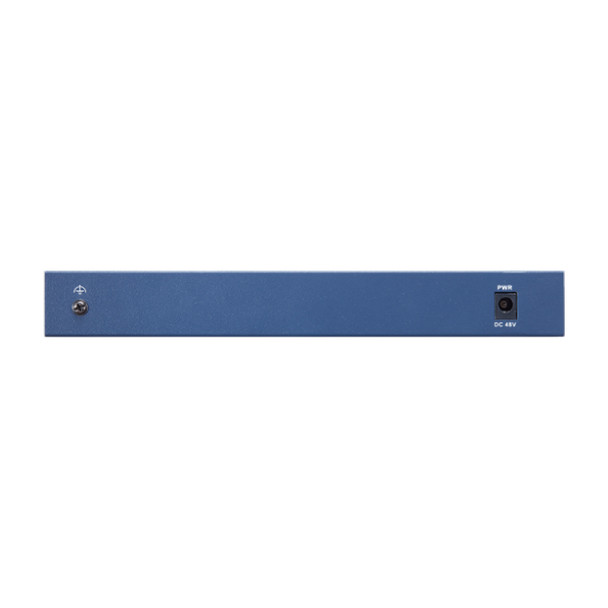

Hikvision DS-3E0510P-E 8-Port Gigabit Unmanaged POE+ Switch
DS-3E0510P-E switches are layer 2 Gigabit PoE unmanaged switches, providing 8 Gigabit PoE ports, one 10/100/1000 Mbps RJ45 port, and one 10/100/1000 Mbps SFP fiber optical port. The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all Gigabit ports guarantee stable transmission of data.
Key Features:
- Layer 2 network switch designed for video data transmission
- 8 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
- IEEE 802.3 af & at high PoE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- PoE power management.
- Gigabit network access.
- Wire-speed forwarding and non-blocking design.
- Solid high-strength metal shell.
- Reliable fan-free design.
Replacement of:
DS-3E0105P-E2
Downloads
Datasheet
Hikvision-DS-3E0510P-E-Datasheet-A1
Popular Search
Specifications
- Port Number 8 x Gigabit PoE ports, 1 x Gigabit RJ45 port, and 1 x Gigabit SFP fiber optical port
- Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding Mode Store-and-forward switching
- MAC Address Table 4 K
- Switching Capacity 20 Gbps
- Packet Forwarding Rate 14.88 Mpps
- Internal Cache 1.5 Mbits
Compatible products
Additional Information
Accessory Type:
|
Switch
|
Switch Type:
|
PoE Switch
|
Warranty:
|
3-year Manufacturer Warranty
|
