Description

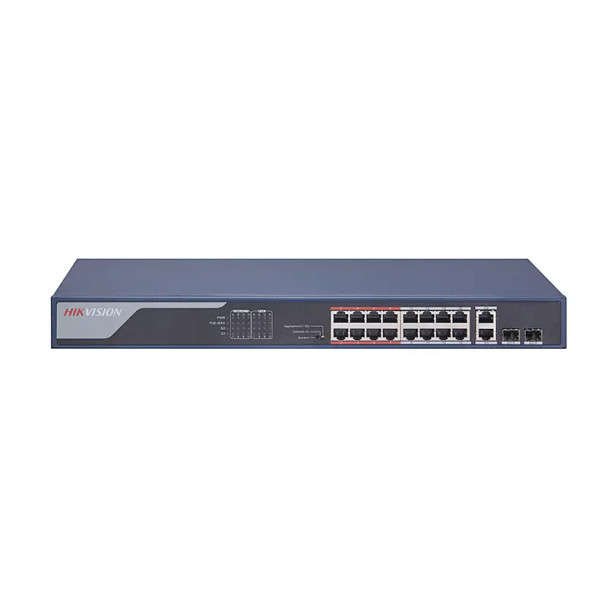

Hikvision DS-3E1318P-EI Smart Managed 16-Port PoE Switch, 100 Mbps, Blue
The Hikvision DS-3E1318P-EI Smart Managed 16- Port 100 Mbps PoE Switch features easy management and maintenance. You can easily deploy, monitor, and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network, and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
Key Features:
- 16 x 100 Mbps PoE Ports, 2 x Gigabit Combos Uplink
- IEEE 802.3at/af PoE Ports
- Network Topology Management, Alarm Push, Network Health Monitor
- 6 KV Surge Protection for PoE Ports
- AF/AT Camera Can Reach up to 980 ft (300 m) in Extend Mode
- Visualized Topology Management
- Network Health Monitor
- Real-Time Alarm Push
- Video Control and Preview
Downloads
User Manual
Hikvision-DS-3E1318P-EI-User-Manual-A1
Datasheet
Hikvision-DS-3E1318P-EI-Datasheet-A1
Firmware
Hikvision-DS-3E1318P-EI-Firmware-A1
Quick Start Guide
Hikvision-DS-3E1318P-EI-Quick-Start-Guide-A1
Popular Search
Additional Information
|
Alternative SKUs:
|
HX-SW1318PEI
|
|
Certifications:
|
cULus
CE
FCC
|
|
Color:
|
Blue
|
|
Dimensions:
|
440 x 44 x 220.8 mm (4.76 x 3.47 x 1.09 in)
|
|
Environmental:
|
Indoor
|
|
Fiber Ports:
|
2x 1 Gbps SFP Ports
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
250 Watts
|
|
Network Interface:
|
16x RJ-45 10/100 Mbps
|
|
Number of PoE Ports:
|
16 PoE Ports
|
|
PoE Standards:
|
IEEE 802.3af
IEEE 802.3at
|
|
Power Budget:
|
230 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Power for each port:
|
30W
|
|
Storage Temperature:
|
-40 °C to 85 °C (-40 °F to 185 °F)
|
