Description
Hikvision DS-3E1326P-EI 24 Port Fast Ethernet Smart POE Switch
Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
Key Features:

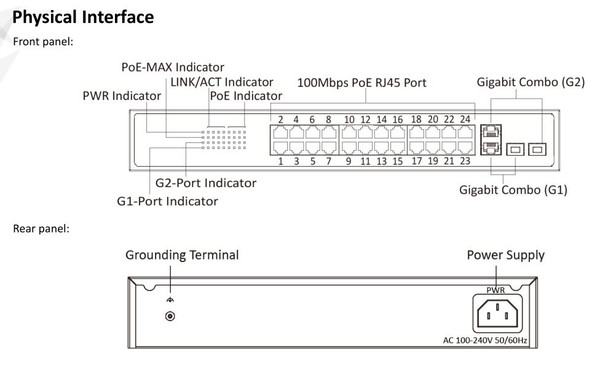

- 24 × 100 Mbps PoE RJ45 ports, 2 × gigabit combos.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
Downloads
Datasheet
Hikvision-DS-3E1326P-EI-Datasheet-A1
Popular Search
Additional Information
|
Accessory Type:
|
Switch
|
|
Dimensions:
|
440 x 44 x 221 mm (4.76 x 3.47 x 1.09 in)
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
400 Watts
|
|
Number of Ports:
|
24 Ports
|
|
PoE Standards:
|
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3z
|
|
Power Budget:
|
370 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Power for each port:
|
30W
|
|
Product Series:
|
Hikvision Pro Series
Hikvision Smart Series
|
|
Surge Protection:
|
6 kV
|
|
Switch Type:
|
PoE Switch
|
