Hikvision DS-3E1510P-SI Smart Managed 8-Port Gigabit PoE Switch, 20Gbps, Blue

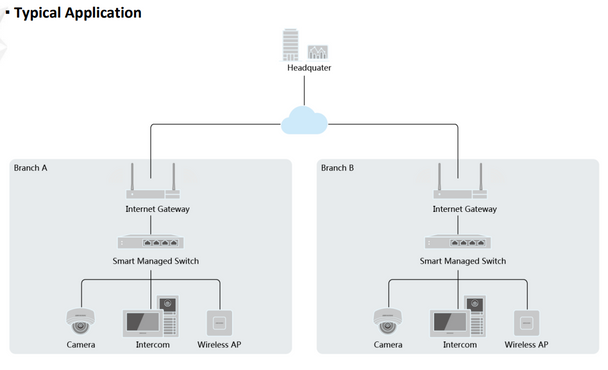

Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your security system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
Key Features:
- 8 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
Downloads
Datasheet
Hikvision-DS-3E1510P-SI-Datasheet-A1
Quick Start Guide
Hikvision-DS-3E1510P-SI-Quick-Start-Guide-A1
Popular Search
Additional Information
|
Accessory Type:
|
Switch
|
|
Alternative SKUs:
|
HX-SW1510PSI
|
|
Certifications:
|
FCC
RCM
REACH
RoHS
WEEE
|
|
Color:
|
Blue
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
217.6 x 27.8 x 108.55 mm (8.57 x 1.09 x 4.27 in)
|
|
Environmental:
|
Indoor
|
|
Fiber Ports:
|
2x 1 Gbps SFP Ports
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
120 Watts
|
|
Number of PoE Ports:
|
8 PoE Ports
|
|
PoE Standards:
|
IEEE 802.3af
IEEE 802.3at
|
|
Power Budget:
|
110 Watt
|
|
Power Supply:
|
48 VDC
|
|
Storage Temperature:
|
-40 °C to 85 °C (-40 °F to 185 °F)
|
|
Surge Protection:
|
6 kV
|
|
Switch Type:
|
PoE Switch
|
