Description

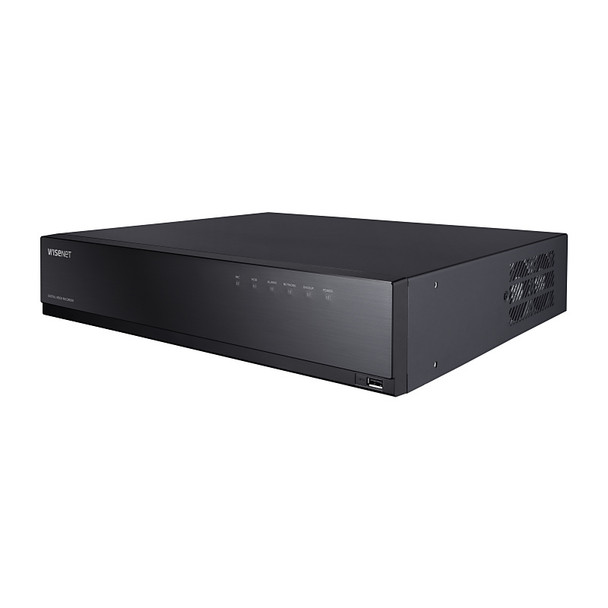

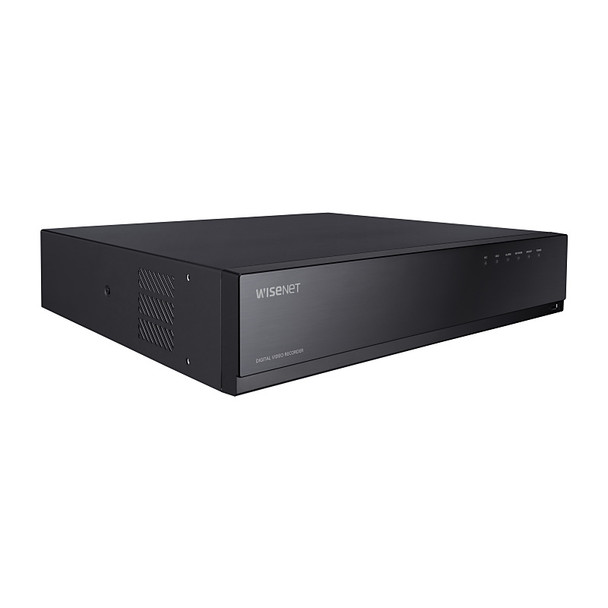

Samsung Hanwha HRX-1635 4K H265 16 Channel Pentabrid Digital Video Recorder, No HDD Included
Key Features:
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18 Channels (Analog Maximum 16 channels + Network Maximum 2-18 channels, depending on number of analog channels), up to 8MP
- H.265, H.264, MJPEG codec
- Recording Analog Camera up 8MP(15fps), 5MP(20fps), 4MP(30fps), 2MP(30fps),1MP(30fps), 960H(or 720H)(30fps) , per channel
- Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps.
- 4 channel audio input/ 1 channel audio output, 16 alarm input and 4 relay output
- Coaxial control
- Up to 8 SATA HDDs (6TB/HDD)
- HDMI/VGA video output, 1 X spot monitor output
- P2P service (QR code connect) for easy Wisenet Viewer / Wisenet Mobile app connection
- NDAA & FCC Compliant
Downloads
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
16 Channel
|
|
Alarm Output:
|
4 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
4x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
Up to 6TB
|
|
Certifications:
|
FCC
CE
KC
UL Listed
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
SUNAPI
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
440 x 88 x 384.8 mm (17.32 x 3.46 x 15.15 in)
|
|
Hard Drive Ports:
|
8 SATA Ports
|
|
Languages:
|
English
Spanish
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
200 Watts
|
|
Max. Incoming Bandwidth:
|
128Mbps
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
48 TB
|
|
Mobile Apps:
|
Wisenet Mobile
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
|
Outgoing Bandwidth:
|
32 Mbps
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
Samsung Hanwha WiseNet HD+ Series
|
|
Recorder Technology:
|
Digital Video Recorder (DVR)
|
|
Relay Output:
|
4 Channels
|
|
Serial Interface:
|
1x RS485
1x RS422
|
|
USB Interface:
|
2x USB 2.0
1x USB 3.0
|
|
Video Output:
|
1x HDMI
1x VGA
|
|
Warranty:
|
3-year Manufacturer Warranty
|
