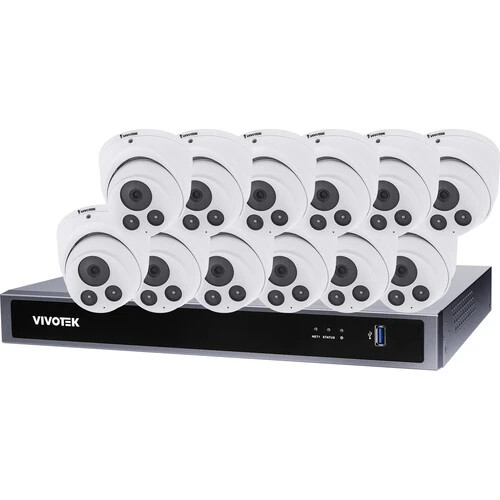

Vivotek V5K12D4A4 16 Channel 4K(8MP) Network Video Recorder with 4TB HDD & 12 x 5MP Outdoor Vandal Dome IP Cameras

Vivotek V5K12D4A4 16 Channel 4K(8MP) Network Video Recorder with 4TB HDD & 12 x 5MP Outdoor Vandal Dome IP Cameras

The Vivotek V5K12D4A4 is a complete and robust surveillance solution built for professional-grade security applications. It includes a 16-channel 4K(8MP) network video recorder (NVR) with 4TB of pre-installed storage, supporting up to two hard drives for a total capacity of 16TB. Equipped with 16 integrated PoE ports, the NVR enables simple plug-and-play installation while managing and recording up to 16 cameras simultaneously. It supports HDMI and VGA outputs with display resolutions up to 3840x2160, ensuring high-quality live viewing and playback. The included twelve 5MP outdoor vandal dome IP cameras offer 20fps video recording at 2560x1920 resolution and feature a 2.8mm fixed lens with a 103-degree horizontal angle of view. True Wide Dynamic Range (120 dB) and Supreme Night Visibility (SNV) technologies deliver exceptional performance in both bright and low-light environments. These cameras are equipped with Smart IR technology for infrared coverage up to 30 meters (98 feet) and offer ePTZ capabilities for digital zoom. Engineered for durability, each unit is IP66-rated for weather resistance and IK10-rated for impact protection, making them ideal for challenging outdoor conditions. Advanced video analytics including motion detection, tampering, and cybersecurity alerts are supported, along with seamless integration through ONVIF profiles G, S, and T. The system also features built-in microSD card slots for edge storage, H.265 compression for efficient bandwidth usage, and is fully compatible with Vivotek's VIVOCloud and VAST CMS platforms for centralized management.

Key Features:

• 16-channel 4K(8MP) network video recorder; supports up to 192Mbps recording throughput
• 4TB HDD included; expandable up to 16TB with dual HDD slots
• ONVIF compliance; integrates with third-party IP cameras for flexibility
• Twelve 5MP outdoor vandal dome IP cameras; delivers 2560x1920 resolution at 20fps
• IP66 and IK10-rated cameras; built for durability in outdoor and high-risk environments
• 2.8mm fixed lens; provides a 103° horizontal field of view
• Smart IR technology; supports up to 98 feet of infrared night vision
• True WDR (120 dB) and Supreme Night Visibility; ensures clarity in challenging lighting
• Multiple compression formats; supports H.265, H.264, and MJPEG for efficient storage
• Local PoE support; powers up to 16 cameras directly from the NVR
• VIVOCloud and VAST CMS compatibility; supports remote and centralized management
