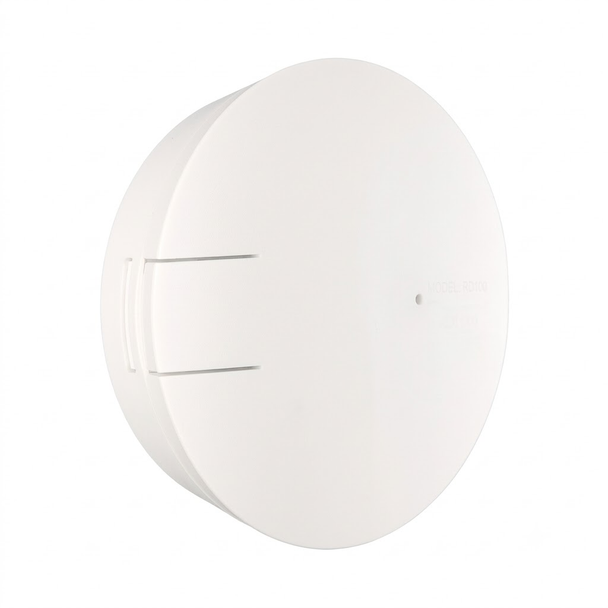

2GIG FF100-345 FireFighter Smoke and CO Detector Listener

2GIG FF100-345 FireFighter Smoke and CO Detector Listener

The 2GIG FF100-345 is a wireless FireFighter Smoke and Carbon Monoxide Detector Listener engineered to add wireless fire and CO notification to any 2GIG-compatible alarm system without replacing existing UL-listed smoke and CO detectors. Rather than functioning as a detector itself, the FF100-345 uses a built-in microphone to acoustically listen for the Temporal 3 sound pattern (used by UL-listed smoke detectors) and the Temporal 4 sound pattern (used by UL-listed CO detectors) — and instantly transmits a wireless alert to the alarm panel when either signal is detected.

This acoustic listening approach preserves existing hardwired detector investments while adding modern connected-home alarm notification, remote monitoring, and central-station reporting to the same protected spaces. Installers mount the FF100-345 within 6 inches (15 cm) of the existing detector; when the detector activates, its alarm tone triggers a wireless transmission to the 2GIG panel over the 345 MHz control channel, enabling the panel to raise an alarm, notify the monitoring center, and send push notifications to the homeowner's phone.

The FF100-345 is compatible with the 2GIG GC Touch, 2GIG Edge, GC2e, and GC3e wireless alarm panels. A CR123A lithium battery powers the sensor for up to 5 years of typical operation, and a 64-minute supervisory interval confirms the sensor is online and functional. A tamper switch detects removal or cover opening, and a configurable encryption switch enables encrypted transmission for security-conscious installations.

Key Features:

• Wireless FireFighter smoke and CO detector listener for 2GIG-compatible alarm systems; adds wireless notification without replacing existing UL-listed detectors
• Acoustic detection of Temporal 3 (smoke) and Temporal 4 (CO) alarm sound patterns; preserves existing detector investment
• 345 MHz wireless transmission to 2GIG alarm panels; instant wireless alert when local detector activates
• Compatible with 2GIG GC Touch, 2GIG Edge, GC2e, and GC3e wireless alarm panels; broad compatibility across the 2GIG ecosystem
• 6 inch (15 cm) maximum listening distance; installer places the FF100-345 within listening range of the host detector
• Up to 5-year battery life on a single CR123A lithium battery; minimal maintenance for typical residential installation
• 64-minute supervisory interval; confirms the sensor is online and functional at the alarm panel
• Configurable encryption via internal switch; supports secure transmission for security-conscious installations
• Tamper switch; detects removal from the wall or cover opening for a security alert
• Compact 3.1 x 1.4 x 1.0 in ABS housing; installs discreetly near the existing smoke or CO detector
• Simple wireless enrollment to 2GIG panels; no wiring required at the sensor location
• Enables central-station monitoring and smartphone push notifications for existing hardwired detectors
