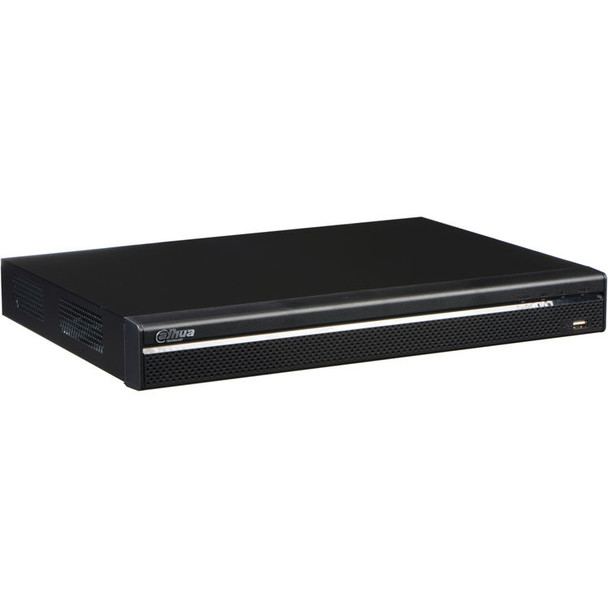

Dahua C52A3N4 16+8 Channel 4K Digital Video Recorder - 4TB HDD Included
- Compression : H.264, H.264 Plus,
- Pre-Installed Storage : 4 TB
- Video Output : 1x HDMI 1x VGA
- Max. Recording Resolution : 4MP
- Hard Drive Ports : 2 SATA Ports
- Max. Storage Capacity : 16 TB Storage Capacity
Description
Dahua C52A3N4 16+8 Channel 4K Digital Video Recorder
Dahua, a global leader in security systems, introduces HCVR technology - the perfect affordable solution to upgrade existing video surveillance systems while leveraging existing networks, cabling, and cameras. HCVR technology utilizes tri-brid access technology to seamlessly record video from HDCVI, CVBS, and IP sources simultaneously. The HCVR offers advanced options such as built-in motion detection algorithms, alarm triggers, and customized recording modes. HCVR technology is the ideal solution for actively monitoring and recording video feeds in wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
Record and monitor video from analog/HDCVI camera inputs and IP camera inputs simultaneously. The C52 series supports a maximum of 24 channels, with up to 16 channels of HDCVI/CVBS inputs and up to an additional 8 channels of IP inputs. The flexibility of the HCVR allows all 24 channels to record input from IP cameras, or from a combination of input from analog and IP sources (not to exceed the maximum number of analog cameras allowed per HCVR). In addition, the HCVR supports a maximum of 16 local live-view channels and 16 playback channels.
The HCVR offers a variety of configurable recording options and schedules that saves HDD space and active monitoring time. The HCVR monitors incoming video and can be programmed to record if motion is detected. The HCVR can also be programmed to record on a schedule or at different intervals. The recording options and schedules can be set for each individual camera or copied to all cameras.
Key features:
- 16 Analog/HDCVI Inputs, 16 + 8 IP Inputs, 4K (8 MP) Digital Video Recorder
- 4TB HDD included
- Embedded Processor
- Smart H.264+/H.264 Dual-stream Video Compression
- 1x HDMI, 1x VGA
- 2 SATA Ports, up to 8 TB capacity for each disk
- Supports HDCVI/CVBS Video Inputs
- Max. 2/4/8 IP Channels, each channel up to 5 MP
- Max. 24/48/96 Mbps Incoming Bandwidth
- HDMI Output up to 4 MP (3840 x 2160) Resolution
- Built-in Smart Search and Intelligent Video System
- Dimensions: 1U, 375.0 mm × 287.0 mm × 53.0 mm
- ONVIF
Downloads
Additional Information
4K Support: |
4K Supported
|
Channel Capacity: |
16 camera channels
|
Compression: |
H.264
H.264 Plus
|
Hard Drive Ports: |
2 SATA Ports
|
Max. Recording Resolution: |
4MP
|
Max. Storage Capacity: |
16 TB
|
NDAA Compliance: |
|
Pre-Installed Storage: |
4 TB
|
Rack Unit (U): |
1U
|
Recorder Technology: |
Digital Video Recorder (DVR)
|
Video Output: |
1x HDMI
1x VGA
|
Warranty: |
5-year Manufacturer Warranty
|
ePoE Technology: |
|
