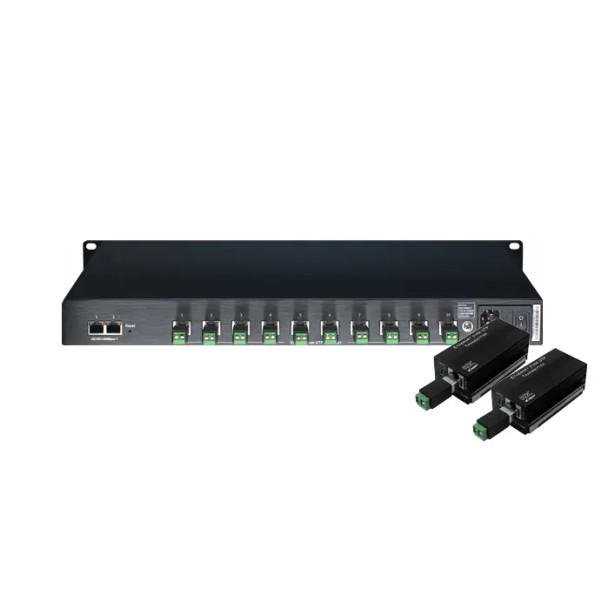

Aiphone IPW-10VC Rack Mount 2-Wire Network Adaptor Kit
The Aiphone IPW-10VC is an analog-to-IP converter kit designed to facilitate network intercom connections using existing 2-conductor copper wiring, including unshielded twisted pair (UTP). This kit includes one IPW-10VR rack-mount receiver module and ten IPW-1VT transmitter modules, allowing for multiple station connections. Each connection utilizes a pair of the 20 included RJ45-to-2-wire converters, and the network connection is managed via a single Ethernet port on the IPW-10VR. The IPW-10VC supports 22 to 18 AWG shielded or unshielded wire and provides PoE to connected stations. However, PoE passthrough is not supported on select IX Series stations. The number of master stations that can be called depends on the wire distance and type of station being used, making it a flexible solution for upgrading legacy intercom systems to IP communication.
Key Features:
- Works with existing 2-conductor wire; simplifies retrofitting of analog systems
- Supplies PoE to connected stations; ensures power efficiency for IP intercoms
- Rack-mount receiver; allows for organized installation in network environments
- LED status indicators; provide clear operational feedback for troubleshooting
- Supports calling capacity of up to 5 master stations (0-500 feet) and 3 master stations (501-1000 feet) for video intercoms
- Supports calling capacity of up to 7 master stations (0-1000 feet) for audio intercoms
- Includes 10 UTP ports (RJ45 to 2-wire connector); allows seamless connection to multiple stations
- Power input of 100-240V AC and maximum power draw of 260W; supports stable operation
- Wide operating temperature range of -4°F to 158°F (-20°C to 70°C); suitable for various environments
- Compact rack-mount design with dimensions of 1-3/4" h x 19" w x 11" d; ensures efficient space utilization
