Aiphone IPW-1VC Analog to IP Converter Set

Aiphone IPW-1VC Analog to IP Converter Set

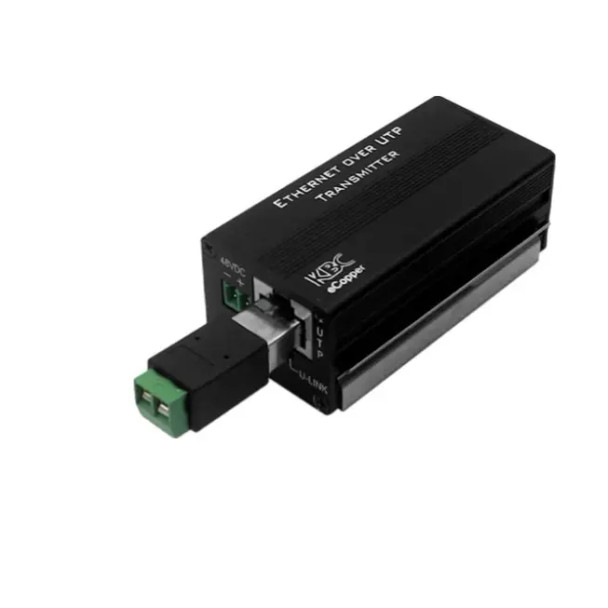

The Aiphone IPW-1VC is an analog-to-IP converter set that enables network intercom stations to connect using existing 2-conductor copper wiring. It includes an Ethernet-to-UTP transmitter and receiver, two RJ45-to-2-wire converters, and a power supply for the receiver. The adaptor supports 22 to 18 AWG shielded or unshielded wire and allows for flexible installation in environments where rewiring is not an option. While it supplies PoE to the station, it does not support PoE pass-through on select IX Series stations. The IPW-1VC provides a reliable and cost-effective solution for upgrading analog systems to IP communication.

Key Features:

• Works with existing 2-conductor wire; enables seamless analog-to-IP conversion
• Supplies PoE to connected intercom stations; ensures efficient power delivery
• LED indicators for status; provides clear operational feedback
• Compatible with both shielded and unshielded 22 to 18 AWG wire; supports flexible wiring options
• Supports calling capacity of up to 5 master stations (0-500 feet) and 3 master stations (501-1000 feet) for video intercoms
• Supports calling capacity of up to 7 master stations (0-1000 feet) for audio intercoms
• Wire distance of up to 1000 feet on 22 to 18 AWG wiring; ensures long-distance connectivity
• Compact design with dimensions of 1-7/16" h x 3" w x 1-1/8" d; suitable for space-constrained installations
• Operating temperature range of -4°F to 140°F (-20°C to 60°C); designed for reliable performance in various conditions
