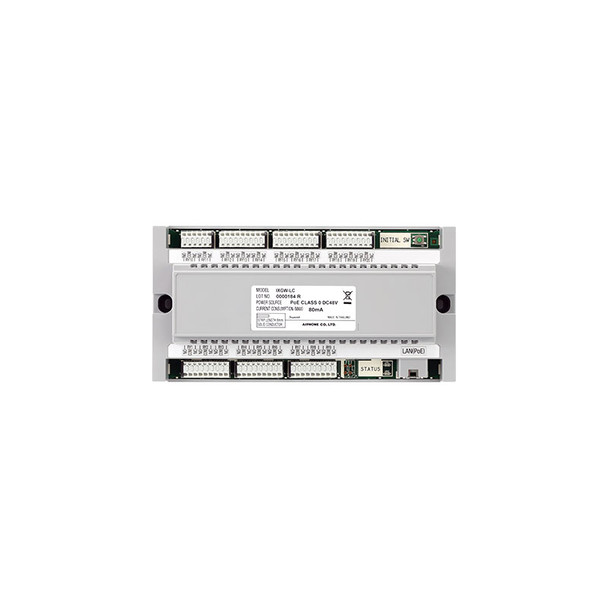

Aiphone IXGW-LC Elevator Lift Control Adapter

Brand: Aiphone
Part Number: IXGW-LC
Write a Review
$386.28
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Access Control Type : Elevator Controller

Description

Aiphone IXGW-LC Elevator Lift Control Adapter

Elevators tend to be an oversight when adding entry security. With the lift control adapter, visitors will only be given access to the floor in which the tenant resides, helping to ensure the right people go to the proper floor. With up to 16 adapters, even the largest buildings with multiple elevators can be accommodated.

The IXGW-LC is a lift control adaptor for the IXG Series IP multi-tenant system. This adaptor allows for integration to the elevator control system allowing the elevator to be called to specific floors based on which tenant opened the door. The IXGW-LC is equipped with 20 Form C relays and up to 16 adaptors can be included in a building. Each relay can be configured and assigned to a specific entry, tenant station, or app.

Individual relay contacts can be activated when a specific tenant activates door release on a specific entry panel allowing the elevator to open and go to a specific floor. Additionally the elevator recall button on the IXG-2C7 can be used to activate a contact to recall the elevator to that specifi c fl oor.

Key Features:

  • PoE compliant
  • 20 Form C relays
  • Relay rating (24V AC/DC 500mA)
  • Max of 16 adaptors per building

Additional Information

Access Control Type:
Elevator Controller
Accessory Type:
Adapter
Adapter Type:
Elevator Lift Control Adapter
Certifications:
UL Listed cUL
Dimensions:
108 x 210 x 60.3 mm (4.25 x 8.25 x 2.37 in)
Max Power Consumption:
4.4 Watts
Network Interface:
1x Rj-45 10/100 Base-T
Operating Temperature:
-10 °C to 50 °C (14 °F to 122 °F)
Power Supply:
PoE (IEEE 802.3af)
Protocols:
TCP UDP IPv4 IPv6 HTTP HTTPS IGMP MLD SFTP DHCP NTP DNS TLS
