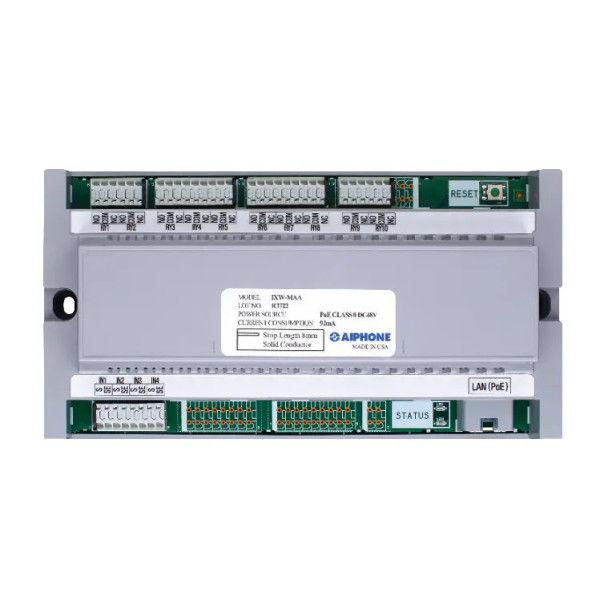

Aiphone IXW-MAA Multi-Purpose Adaptor

Aiphone IXW-MAA Multi-Purpose Adaptor

The Aiphone IXW-MAA is a multi-purpose adapter designed for the IX Series, providing flexible integration options with four contact inputs and ten relay outputs. The inputs can be programmed to send a command to a specific station, while the relay outputs are assigned to stations and triggered when an associated station’s relay output changes state. It supports PoE (IEEE 802.3af) for efficient power management and can be surface-mounted directly to a wall or installed on a standard 170mm DIN rail. The device features Ethernet connectivity and supports multiple security and communication protocols, making it ideal for expanding automation and security capabilities in an IX Series system.

Key Features:

• Supports four contact inputs; allows automation commands to be sent to specific stations
• Ten form C relay outputs; provides flexible integration for security and automation systems
• Surface mount or DIN rail installation; offers flexible mounting options for various setups
• PoE powered; operates via IEEE 802.3af class 0 for efficient power management
• Secure Ethernet connectivity; supports 10BASE-T and 100BASE-TX for seamless network integration
• Wide protocol compatibility; includes IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SFTP, DHCP, NTP, and DNS
• Port security via IEEE 802.1X; ensures secure communication over the network
• Relay output rating of 24V AC/DC 500mA; allows integration with external systems
• Operating temperature range of 14°F to 122°F (-10°C to 50°C); suitable for various environments
• Dimensions of 4-1/4" h x 8-1/4" w x 2-3/8" d; compact design for easy deployment in security systems
