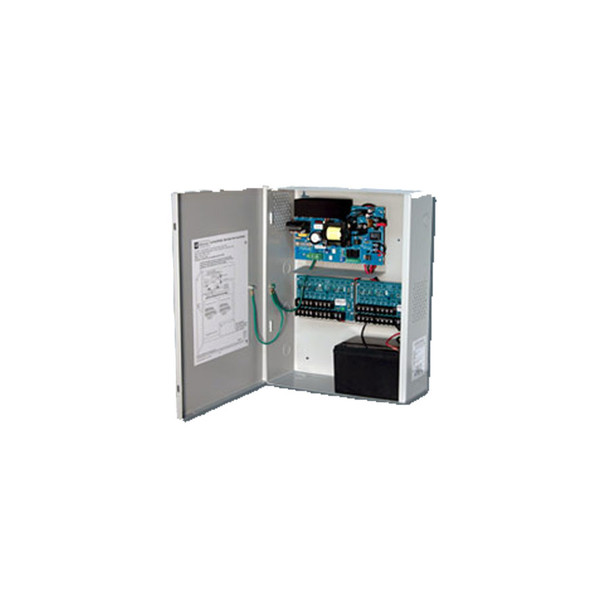

Altronix AL1012ULXPD16CB 16 PTC Outputs Power Supply/Charger

Altronix AL1012ULXPD16CB 16 PTC Outputs Power Supply/Charger

AL1012ULXPD16CB is a multi-output power supply/charger that converts a 115VAC, 60Hz input into sixteen (16) 12VDC Class 2 Rated power limited outputs.

Key Features of Altronix AL1012ULXPD16CB

• Input 115VAC, 60Hz, 2.6A
• Input fuse rated @ 5A./250V
• Output:

  • 12VDC output
  • 10A. continuous supply current
  • Eight (8) Class 2 Rated PTC protected power limited outputs
  • Outputs are rated @ 2.5A
  • Filtered and electronically regulated output
  • Short circuit and thermal overload protection
• Battery Backup:

  • Built-in charger for sealed lead acid or gel type batteries
  • Automatic switch over to stand-by battery when AC fails
• Supervision:

  • AC fail supervision (form "C" contacts)
  • - Notification trigger is selectable for 30 seconds (factory set) or 6 hours
  • Low battery supervision (form "C" contacts)
  • Battery presence supervision (form "C" contacts)
• Visual Indicators:

  • AC input and DC output LED indicators
• Electrical:

  • Operating temperature: 0° C to 49° C ambient
  • 61.42 BTU/Hr
  • System AC input VA requirement: 299VA
