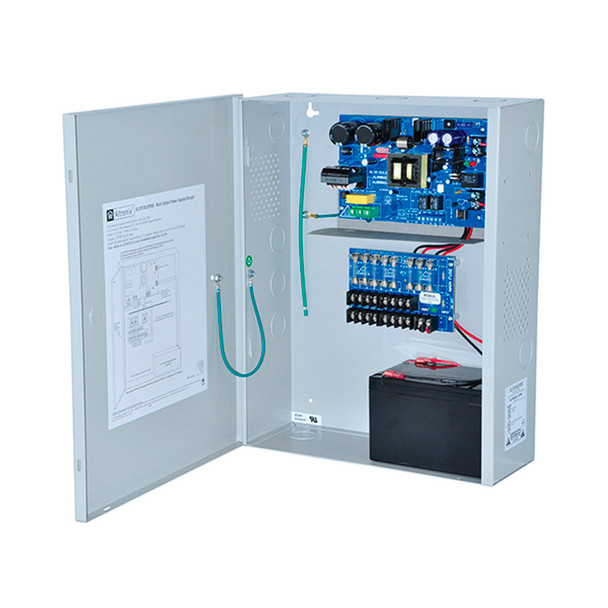

Altronix AL1012ULXPD8 8 Fused Outputs Power Supply Charger

Brand:
Part Number: AL1012ULXPD8
Write a Review
  • Altronix AL1012ULXPD8 8 Fused Outputs Power Supply Charger
  • Altronix AL1012ULXPD8 8 Fused Outputs Power Supply Charger
$225.95
OR
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty
  • Number of Supported Cameras : 8
  • Output Voltage : DC 12V
  • Input Current : 1.9A
  • Input Voltage : AC 115V
  • Output Current : 10A

Description

Altronix AL1012ULXPD8 8 Fused Outputs Power Supply Charger

AL1012ULXPD8 is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight (8) 12VDC non-power limited outputs. Power Supply Charger, 8 Fused Outputs, 12VDC @ 10A, 115VAC, BC400 Enclosure

Key features of Altronix AL1012ULXPD8

  • Input
    • Input 115VAC, 60Hz, 1.9A.
    • Input fuse rated @ 5A/250V.
  • Output
    • 12VDC output.
    • 10A continuous supply current.
    • Eight (8) fuse protected outputs.
    • Output fuses are rated @ 3.5A/250VAC.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating 0 to 49° C (32 to 120° F ).
    • Storage - 20 to 70° C ( - 4 to 158° F).
    • Relative Humidity 85% +/- 5%
    • BTU/Hr. (approx.): 61 BTU/Hr.
    • System AC input VA requirement: 299VA.
View AllClose

Additional Information

Accessory Type:
Power Supply
Input Current:
1.9A
Input Voltage:
AC 115V
Number of Supported Cameras:
8
Output Current:
10A
Output Voltage:
DC 12V
Warranty:
Life-time Warranty
