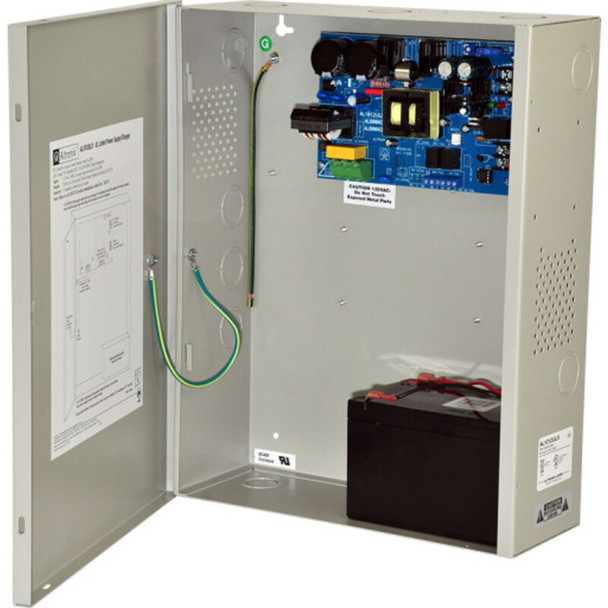

Altronix AL1012X220 Power Supply Charger - Single Fused Output

Brand:
Part Number: AL1012X220
Write a Review
$211.36
OR
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

Altronix AL1012X220 Power Supply Charger - Single Fused Output

AL1012X220 is a power supply/charger that converts a nominal 220VAC, 50/60Hz input into a single 12VDC output.

Key Features:

  • Input
    • Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.3A.
    • Input fuse rated @ 5A/250V.
  • Output
    • 12VDC output.
    • 10A continuous supply current.
    • Output fuse rated @ 15A/32V.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating 0 to 49° C (32 to 120° F ).
    • Storage - 20 to 70° C ( - 4 to 158° F).
    • Relative Humidity 85% +/- 5%
    • BTU/Hr. (approx.): 61 BTU/Hr.
    • System AC input VA requirement: 286VA.
