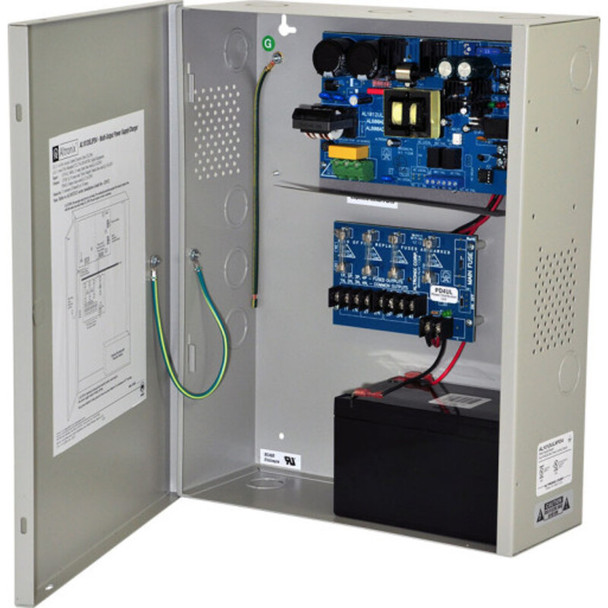

Altronix AL1012XPD4220 Power Supply Charger - 4 Fused Outputs

Altronix AL1012XPD4220 Power Supply Charger - 4 Fused Outputs

AL1012XPD4220 is a multi-output power supply/charger that converts a nominal 220VAC, 50/60Hz input into four (4) 12VDC outputs.

Key Features:

• Input

  • Nominal 220VAC (range 198VAC-256VAC) 50/60Hz, 1.3A.
  • Input fuse rated @ 5A/250V.

• Output

  • 12VDC output.
  • 10A continuous supply current.
  • Four (4) fuse protected outputs.
  • Output fuses are rated @ 3.5A/250VAC.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Supervision

  • AC fail supervision (form "C" contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Temperature

  • Operating 0 to 49° C (32 to 120° F ).
  • Storage - 20 to 70° C ( - 4 to 158° F).
  • Relative Humidity 85% +/- 5%
  • BTU/Hr. (approx.): 61 BTU/Hr.
  • System AC input VA requirement: 286VA.
