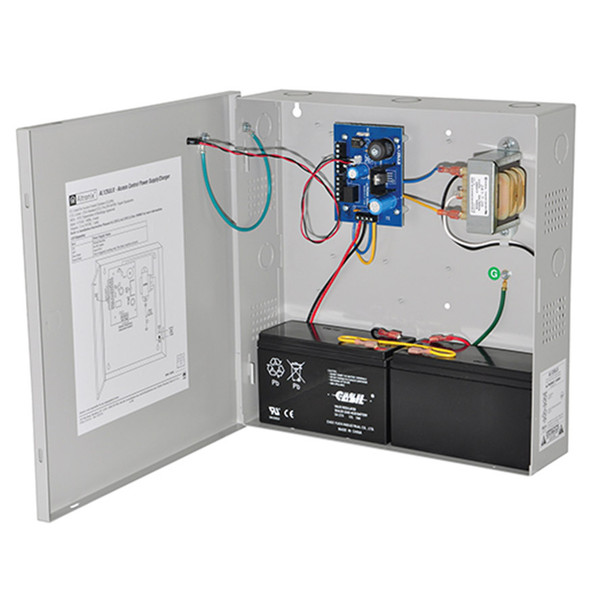

Altronix AL125ULX 115VAC Power Supply/Charger for Access Control

Altronix AL125ULX 115VAC Power Supply/Charger for Access Control

Altronix AL125UL Series power-limited Power Supply/Chargers convert 115VAC 50/60Hz input into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.

Key Features Of Altronix AL125ULX

• Input

  • Input 115VAC, 50/60Hz, 0.6A.
  • Access control trigger input.

• Output

  • 12VDC or 24VDC selectable outputs.
  • 1A supply current.
  • Two (2) Class 2 Rated power limited outputs.
  • Fail-Safe/Fail-Secure lock output (switched).
  • Auxiliary power output (unswitched).
  • PTC protected outputs, rated @ 2.5A.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Supervision

  • Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

• Visual Indicators

  • AC power and unit status indicator on the front panel.

• Temperature

  • Operating 0° C to 49° C (32° F to 120° F).
  • Storage - 20° C to 70ºC ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

    • BTU/Hr (approx.):

      • 12VDC: 6 BTU/Hr.
      • 24VDC: 6 or 12 BTU/Hr.
  • System AC input VA requirement: 55.2VA.
