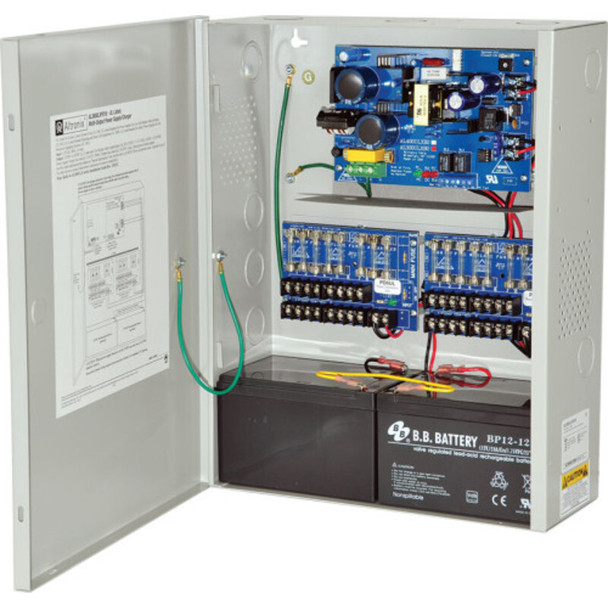

AL300XPD16220 is a multi-output power supply/charger that converts a nominal 220VAC 50/60Hz input into sixteen (16) 12VDC or 24VDC outputs.

Key Features:

• Input

  • Nominal 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.7A.
  • Input fuse rated @ 3.5A/250V.

• Output

  • 12VDC or 24VDC selectable output.
  • 12VDC or 24VDC @ 2.5A supply current.
  • Sixteen (16) fuse protected outputs.
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Supervision

  • AC fail supervision (form "C" contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Temperature

  • Operating 0 to 49° C (32 to 120° F ).
  • Storage - 20 to 70° C ( - 4 to 158° F).
  • Relative Humidity 85% +/- 5%

  • BTU/Hr. (approx.):

    • 12VDC or 12VAC: 15 BTU/Hr.
    • 24VDC or 24VAC: 30 BTU/Hr.
  • System AC input VA requirement: 374VA.
