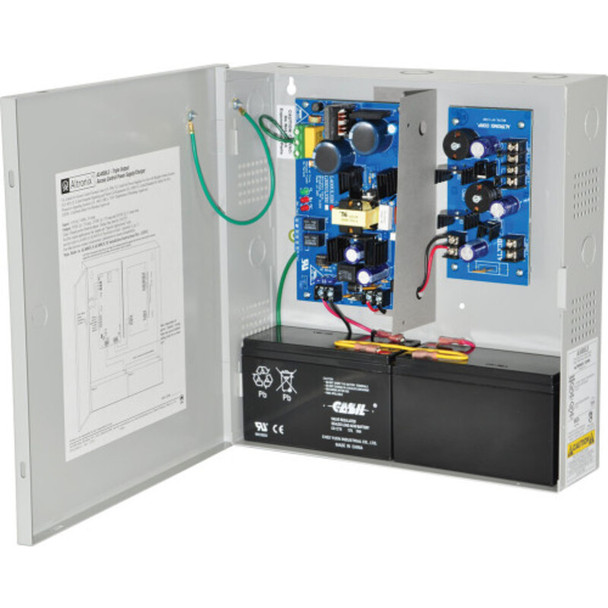

Altronix AL4003V triple output power supply/charger is designed for use with access control systems and accessories. It converts a 220VAC 50/60Hz input into three (3) individually PTC protected 5VDC, 12VDC, and 24VDC regulated outputs.

Key Features:

• Input

  • Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.8A.

• Output

  • 5VDC, 12VDC, 24VDC simultaneous outputs.
  • 5VDC @ 1.75A continuous supply current.
  • 12VDC @ 1.75A continuous supply current.
  • 24VDC @ 1.5A continuous supply current.
  • Outputs are rated @ 2.5A.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Supervision

  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Temperature

  • Operating 0° C to 49° C (32° F to 120° F).
  • Storage - 20° C to 70°C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 34 BTU/Hr.
  • System AC input VA requirement: 176VA.
