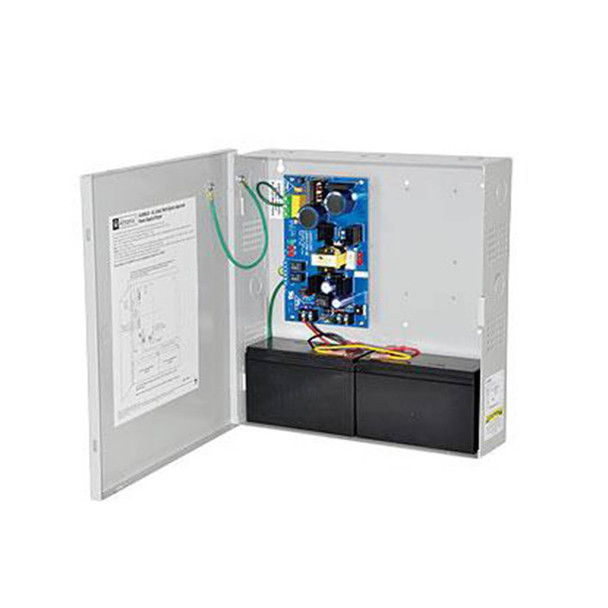

Altronix AL400ULX Single Output Power Supply/Charger

Altronix AL400ULX Single Output Power Supply/Charger

AL400ULX is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.

Key features of Altronix AL400ULX

• Input:

  • Input 115VAC, 60Hz, 3.5A.
  • Input fuse rated @ 3.5A./250V.
• Output:

  • 12VDC or 24VDC selectable output.
• Burglar Alarm Applications(UL 603):

  • 12VDC = 11.5VDC-13VDC.
  • 24VDC = 23VDC-26VDC.
  • 12VDC @ 4A. or 24VDC @ 3A. supply current.
  • Class 2 Rated power limited output.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
• Battery Backup:

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
• Supervision:

  • AC fail supervision (form "C" contacts).
  • - Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).
• Visual Indicators:

  • AC input, DC output and Battery LED indicators.
• Electrical:

  • Operating temperature: 0° C to 49° C ambient.
• BTU/Hr. :

  • 12VDC: 14.71 - 16.63BTU/Hr.
  • 24VDC: 29.43 - 32.41BTU/Hr.
• System AC input VA requirement: 402.5VA.
• 9.55lbs
• 13.5″ x 13″ x 3.25″
• Lifetime Warranty
