Altronix AL400ULXJG Power Supply Charger, Single Class 2 Output

Altronix AL400ULXJG Power Supply Charger - Single Class 2 Output

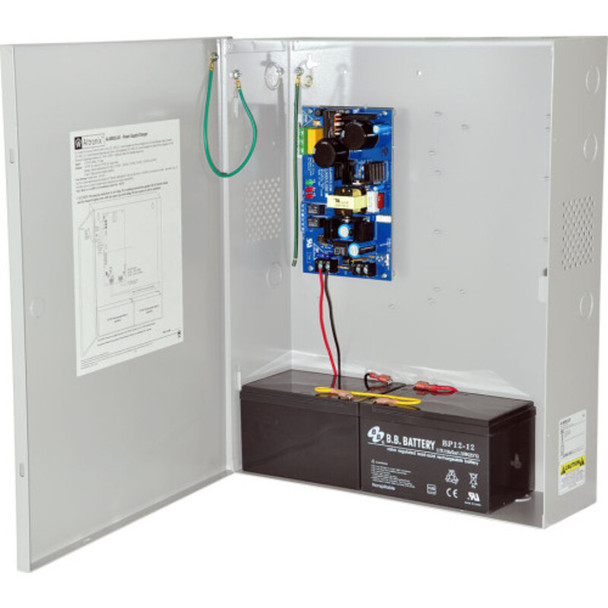

AL400ULXJG is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.

Key Features:

• Input

  • Input 115VAC, 60Hz, 3.5A.
  • Input fuse rated @ 3.5A/250V.

• Output

  • 12VDC or 24VDC selectable output.
  • 12VDC @ 4A or 24VDC @ 3A supply current.
  • Class 2 Rated power-limited output.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Supervision

  • AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Electrical

  • Operating temperature: 0ºC to 49ºC (32ºF to 120ºF).
  • Storage temperature: -20ºC to 70ºC (-4ºF to 158ºF).
  • Relative Humidity 85% +/-5%.

  • BTU/Hr (approx.):

    • 12VDC: 25 BTU/Hr.
    • 24VDC: 37 BTU/Hr.
  • System AC input VA requirement: 402.5VA.
