Altronix AL400XR220 Power Supply Charger - Single Class 2 Output

Altronix AL400XR220 Power Supply Charger - Single Class 2 Output

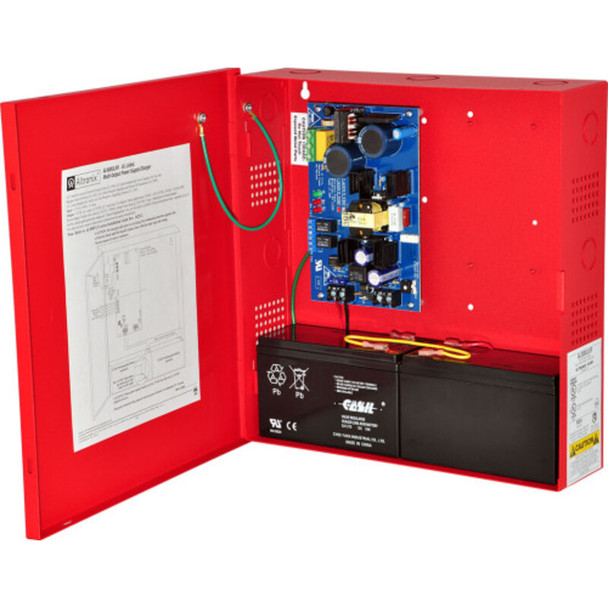

AL400XR220 is a power supply/charger that converts a nominal 220VAC 50/60Hz input into a single 12VDC or 24VDC output.

Key Features:

• Input

  • Nominal 220VAC (range 198VAC - 256VAC), 50/60Hz, 1.5A.
  • Input fuse rated @ 3.5A/250V.

• Output

  • 12VDC or 24VDC selectable output.
  • 12VDC @ 4A or 24VDC @ 3A supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Supervision

  • AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
  • Low battery supervision (form "C" contacts).
  • Battery presence supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Temperature

  • Operating 0° C to 49° C (32° F to 120° F).
  • Storage - 20° C to 70°C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 12VDC: 25 BTU/Hr.
    • 24VDC: 37 BTU/Hr.
  • System AC input VA requirement: 330VA.
