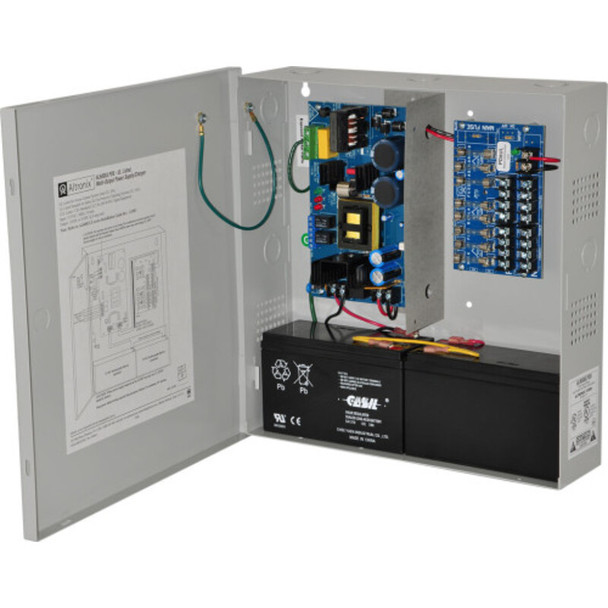

Altronix AL600PD8220 Power Supply Charger - 8 Fused Outputs

AL600PD8220 is a multi-output power supply/charger that converts a nominal 220VAC, 50/60Hz input into eight (8) 12VDC or 24VDC outputs.

Key Features:

  • Input
    • Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5A.
  • Output
    • 12VDC or 24VDC selectable output.
    • 6A continuous supply current.
    • Eight (8) fuse protected outputs.
    • Output fuses are rated @ 3.5A/250VAC.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input, DC output and BAT trouble.
  • Temperature
    • Operating 0 to 49° C (32 to 120° F ).
    • Storage - 20 to 70° C ( - 4 to 158° F).
    • Relative Humidity 85% +/- 5%
      • BTU/Hr. (approx.):
        • 12VDC or 12VAC: 37 BTU/Hr.
        • 24VDC or 24VAC: 74 BTU/Hr.
    • System AC input VA requirement: 330VA.
