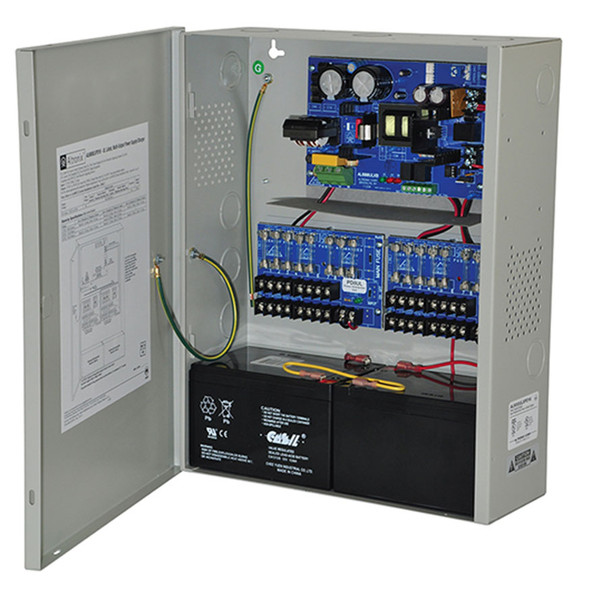

Altronix AL600ULXPD16 Multi-Output Power Supply/Charger

Altronix AL600ULXPD16 Multi-Output Power Supply/Charger

Altronix AL600ULX series power supply/chargers convert a 115VAC, 60Hz input into a single fused, four (4), eight (8) or sixteen (16) fuse or PTC protected outputs. Outputs are selectable for 12VDC or 24VDC with a total of 6A max.

Key Features Of Altronix AL600ULXPD16

Input

• Input 115VAC, 60Hz, 3.5 amp

Output

• 12VDC or 24VDC selectable output
• 6 amp continuous supply current
• Sixteen (16) fuse protected outputs
• Output fuses are rated @ 3.5 amp/250VAC
• Filtered and electronically regulated output
• Short circuit and thermal overload protection

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails
• Maximum charge current 0.7 amp

Supervision

• AC fail supervision (form "C" contacts) - Notification trigger is selectable for 30 seconds (factory set) or 6 hours
• Low battery supervision (form "C" contacts)
• Battery presence supervision (form "C" contacts)

Visual Indicators

• AC input and DC output LED indicators

Electrical

• Operating temperature: 0 degree C to 49 degree C ambient
• 36.85 or 73.70 BTU/Hr
• System AC input VA requirement: 402.5VA
