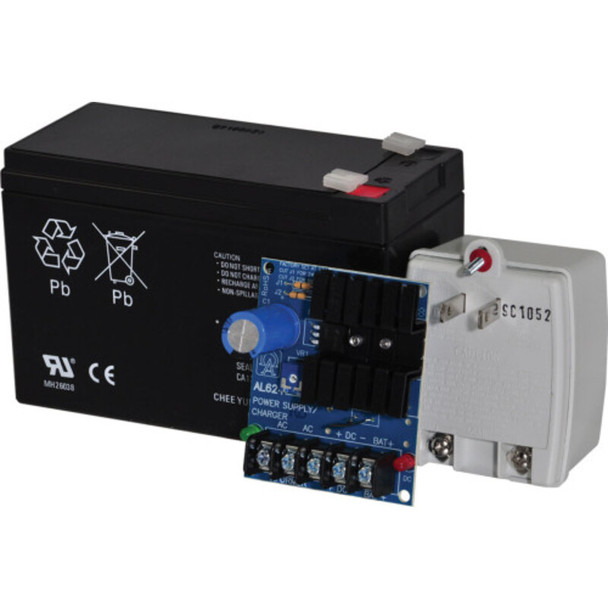

Altronix AL62412CX Linear Power Supply Charger - Single Class 2 Output
Description
Altronix AL62412CX Linear Power Supply Charger - Single Class 2 Output
AL624-12CX power supply/charger kit has a wide range of applications including: access control, security and CCTV system accessories that require additional power.
Key Features:
Input
- 115VAC, 60 Hz 1.2A.
Output
- 12VDC output.
- 12VDC @ 1.2A supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- PTC battery protection.
Visual Indicators
- AC input and DC output LED indicators.
Features
- Power supply/charger with BT126 (12VDC/7AH) and TP1620 plug-in transformer (16.5VAC/20VA).
Temperature
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 7 BTU/Hr.
- System AC input VA requirement: 138VA.
Downloads
Datasheet
Altronix AL62412CX Datasheet
