Description

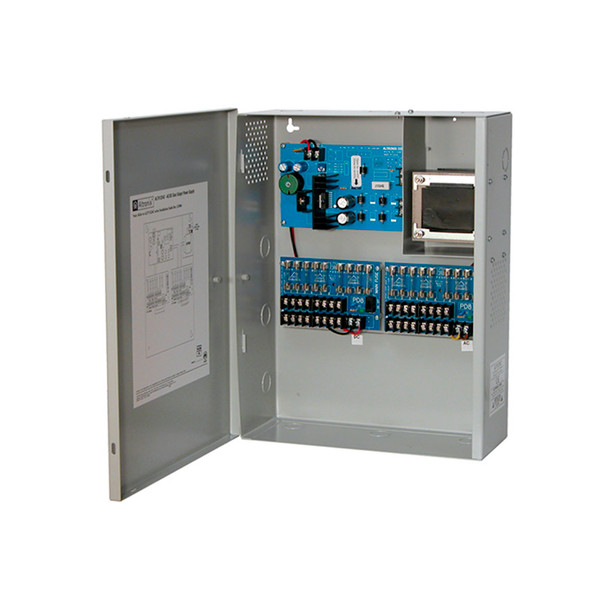

Altronix ALTV1224C220 AC/DC Dual Output CCTV Power Supply
ALTV1224C220 AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs are required.
Key features of Altronix ALTV1224C220
-
Input
- 220VAC 50/60 Hz, 0.8A.
-
Output
- Sixteen (16) individually fused outputs.
- Eight (8) fuse protected outputs @ 12VDC.
- Eight (8) fuse protected outputs @ 24VAC.
- 7A total output current.
- 3.5A supply current @ 12VDC.
- 3.5A supply current @ 24VAC.
- Output fuses are rated @ 3.5A/250VAC.
- Main fuses are rated at 5A/250VAC.
- Filtered and electronically regulated outputs (DC outputs).
- Surge suppression (AC outputs).
-
Features
- AC/DC power LED indicators.
- Power ON/OFF switch.
- Unit maintains camera synchronization.
- Ease of installation saves time & eliminates costly labor.
-
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 64 BTU/Hr.
- System AC input VA requirement: 176VA
Downloads
Datasheet
altronix-DS_ALTV1224C220series-A1.pdf
Popular Search
Additional Information
|
Accessory Type:
|
Power Supply
|
|
Input Current:
|
0.8A
|
|
Input Voltage:
|
220VAC
|
|
Number of Supported Cameras:
|
16
|
|
Output Current:
|
3.5A
|
|
Output Voltage:
|
24VAC
12VDC
|
|
Warranty:
|
Life-time Warranty
|
