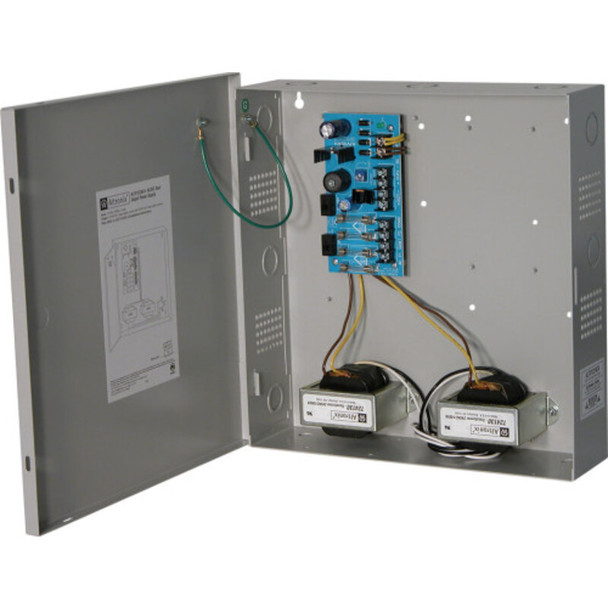

Altronix ALTV1224C4220 CCTV Power Supply - 4 Outputs
ALTV1224C4220 AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs are required.
Key Features:
Input
- 220VAC 50/60 Hz, 1.0A.
Output
- Four (4) individually fused outputs.
- Two (2) fuse protected outputs @ 12VDC.
- Two (2) fuse protected outputs @ 24VAC.
- 6A total output current.
- 2A supply current @ 12VDC.
- 4A supply current @ 24VAC.
- DC output fuses are rated @ 1A.
- AC output fuses are rated @ 3.5A.
- Filtered and electronically regulated outputs (DC outputs).
- Surge suppression (AC outputs).
Features
- AC/DC power LED indicators.
- Power ON/OFF switch.
- Unit maintains camera synchronization.
- Ease of installation saves time and eliminates costly labor.
Temperature
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 72 BTU/Hr.
