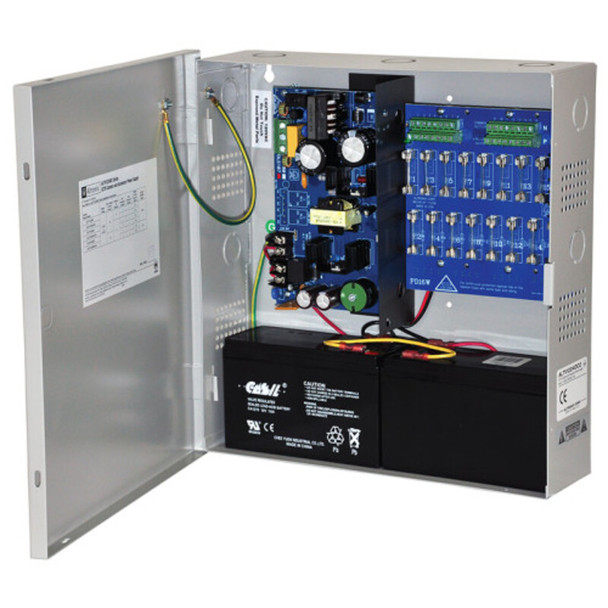

Altronix ALTV1224DC1220 CCTV Power Supply - 16 Fused Outputs

Altronix ALTV1224DC1220 CCTV Power Supply - 16 Fused Outputs

ALTV1224DC1220 is designed to power CCTV Cameras and accessories. It provides 12VDC or 24VDC distributed via sixteen (16) fuse protected outputs with a total of 4A total supply current.

Key Features:

• Input

  • Input 220VAC (working range 198VAC-256VAC), 50/60 Hz, 0.6A.

• Output

  • Sixteen (16) fuse protected outputs.
  • 12VDC or 24VDC.
  • 4A total continuous supply current (0.25A per device, 3.5A max.).
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 12VDC: 25 BTU/Hr.
    • 24VDC: 49 BTU/Hr.
  • System AC input VA requirement: 176VA.

• Features

  • AC input and DC output LED indicators.
  • Power ON/OFF switch.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
