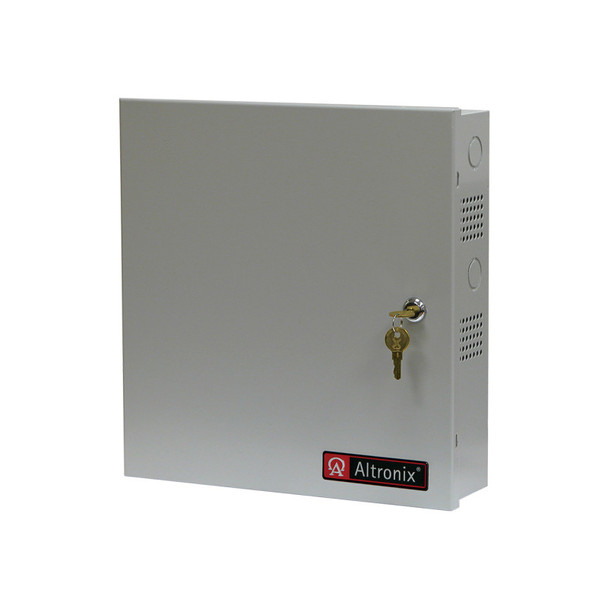

Altronix ALTV1224DC1CB 16 PTC Outputs CCTV Power Supply

Altronix ALTV1224DC1CB 16 PTC Outputs CCTV Power Supply

ALTV1224DC1CB is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via sixteen (16) PTC protected outputs with a total of 4A total supply current.

CCTV Power Supply, 16 PTC Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure

Key Features:

• Input

  • Input 115VAC, 50/60 Hz, 1.45A.

• Output

  • Sixteen (16) PTC protected outputs (auto-resettable).
  • 12VDC or 24VDC.
  • 4A total continuous supply current (0.25A per device, 3.5A max.).
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 12VDC: 25 BTU/Hr.
    • 24VDC: 49 BTU/Hr.
  • System AC input VA requirement: 166.75VA.

• Features

  • AC input and DC output LED indicators.
  • Power ON/OFF switch.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
