Description

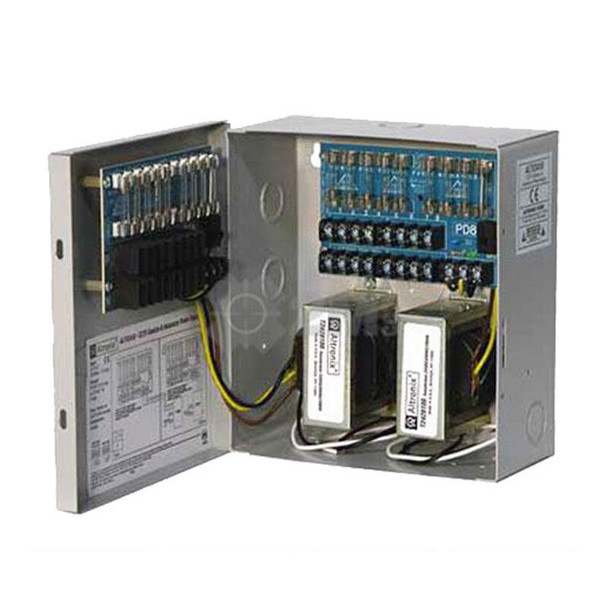

Altronix ALTV2416 Fused Outputs CCTV Power Supply
Altronix ALTV2416 Fused Outputs CCTV Power Supply keeps CCTV cameras, heaters, and other video accessories powered at all times. These sixteen fuse-protected outputs distribute 24VAC or 28VAC to ensure full-optimization of gadgets. This power hub comes with a lifetime warranty.
Key features of Altronix ALTV2416
- 115VAC, 50/60Hz, 1.9 amp. Input
- 16 fuse protected outputs
- 24VAC @ 8 amp (192VA) supply current or 28VAC @ 7 amp (196VA) supply current
- Outputs rated @ 3.5 amp
- Surge suppression
- 0° C to 49° C ambient operating temperature
- 98.27 BTU/Hr @ 24VAC
- 100.32 BTU/Hr @ 28VAC
- 218.5VA System AC input VA requirement
- Secondary fuse rated @ 10 amp/250V
- AC power LED
- Power ON/OFF switch
- Spare fuses provided
- Lifetime Warranty
- Wall mount enclosure for indoor use.
- 8.5"H x 7.5"W x 3.5"D
- 1/2" and 3/4" combination knockouts
- Approx. 9.1 Lbs. (4.127 kg)
