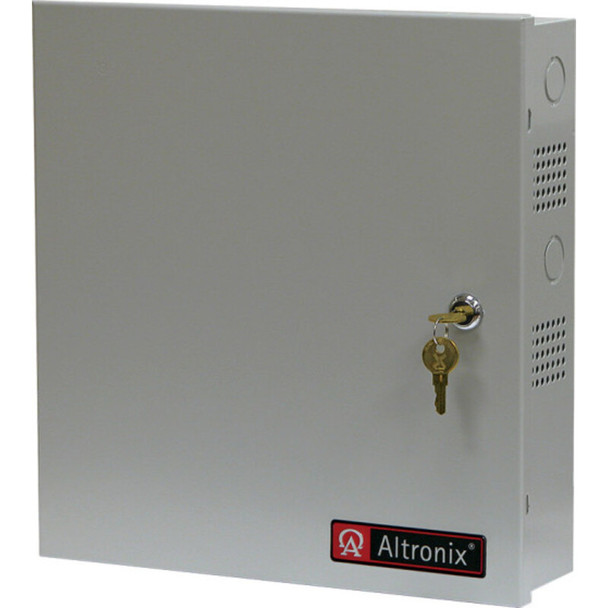

Altronix ALTV2416300ULCB CCTV Power Supply - 16 PTC Class 2 Outputs

(No reviews yet) Write a Review
SKU:
ALTV2416300ULCB
$202.41
Frequently bought together:

Description

Altronix ALTV2416300ULCB CCTV Power Supply - 16 PTC Class 2 Outputs

ALTV2416300ULCB provides 24VAC or 28VAC distributed via Sixteen (16) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

Key Features:

  • Input
    • 115VAC, 50/60Hz, 2.7A.
  • Output
    • Sixteen (16) Class 2 Rated PTC protected power limited outputs (auto-resettable).
    • 24VAC @ 12.5A (300VA) supply current (0.781A per device, 2.5A max.) or 28VAC @ 10A (280VA) supply current (0.625A per device, 2.5A max.).
    • Outputs are rated @ 2.5A.
    • Surge suppression.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 24VAC: 154 BTU/Hr.
        • 28VAC: 143 BTU/Hr.
    • System AC input VA requirement: 310.5VA.
  • Features
    • Secondary fuse rated @ 10A/250V.
    • AC power LED.
    • Power ON/OFF switch.
View AllClose

Additional Information

Warranty:
Life-time Warranty
Accessory Type:
Power Supply
