Description

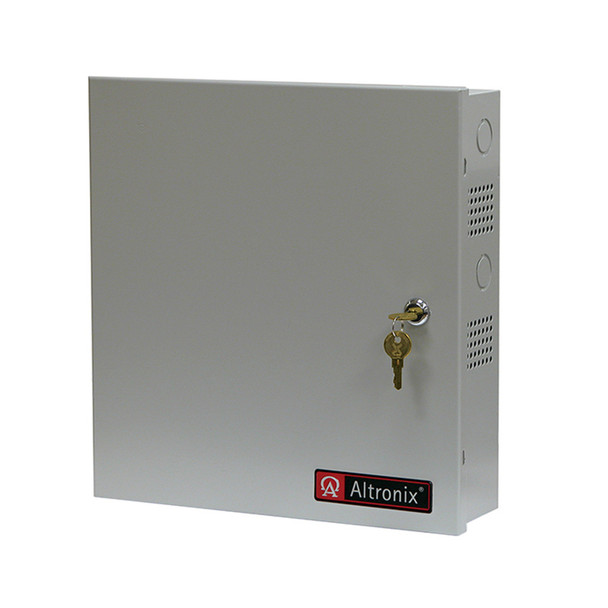

Altronix ALTV2416350 16 Fused Outputs CCTV Power Supply
ALTV2416350 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
CCTV Power Supply, 16 Fused Outputs, 24VAC/28VAC @ 14A, 115VAC, BC300 Enclosure
Key Features:
Input
- 115VAC, 50/60Hz, 2.7A.
Output
- Sixteen (16) fuse protected outputs.
- 24VAC @ 14A (350VA) supply current (0.875A per device, 3.5A max.) or 28VAC @ 12.5A (350VA) supply current (0.781A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Surge suppression.
Electrical
Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
- 24VAC: 172 BTU/Hr.
- 28VAC: 179 BTU/Hr.
- System AC input VA requirement: 310.5VA.
Features
- Main fuse rated @ 15A/32V.
- AC power LED.
- Spare fuses provided. (all models w/primary and/or secondary fuses).
Popular Search
Additional Information
|
Accessory Type:
|
Power Supply
|
|
Environmental:
|
Indoor
|
|
Input Current:
|
2.7A
|
|
Input Voltage:
|
115VAC
|
|
Number of Supported Cameras:
|
16
|
|
Output Current:
|
14A
|
|
Output Voltage:
|
24VAC
|
|
Warranty:
|
Life-time Warranty
|
