Description

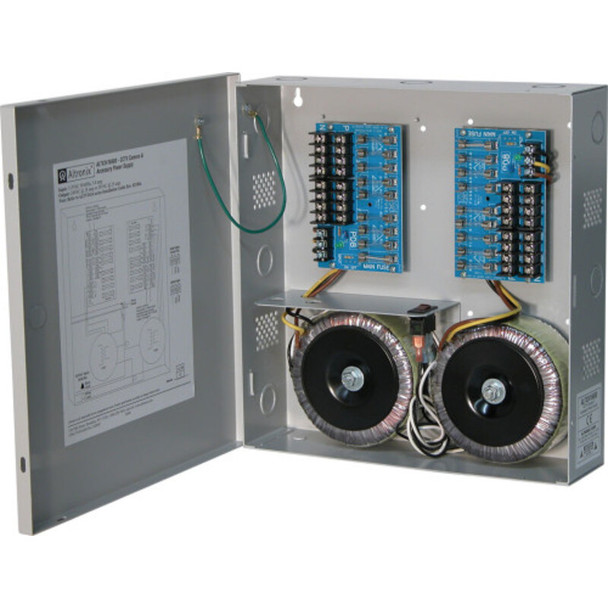

Altronix ALTV2416600220 CCTV Power Supply - 16 Fused Outputs
ALTV2416600220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.
Key Features:
Input
- Input 220VAC, 50/60Hz, 3A.
Output
- Sixteen (16) fuse protected outputs.
- 24VAC @ 28A (700VA) supply current (1.125A per device, 2.5A max.) or 28VAC @ 25A (700VA) supply current (1.56A per device, 2.5A max.).
- Outputs are rated @ 3.5A.
- Surge suppression.
- Main fuse rated @ 15A/32V.
Electrical
Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
- 24VAC: 344 BTU/Hr.
- 28VAC: 358 BTU/Hr.
- System AC input VA requirement: 660VA.
Features
- Secondary fuse rated @ 15A/32V.
- AC power LED.
- Power ON/OFF switch.
Downloads
Datasheet
Altronix ALTV2416600220 Datasheet
