Altronix ALTV2416ULI 16 Isolated Fused Outputs CCTV Power Supply

Altronix ALTV2416ULI 16 Isolated Fused Outputs CCTV Power Supply

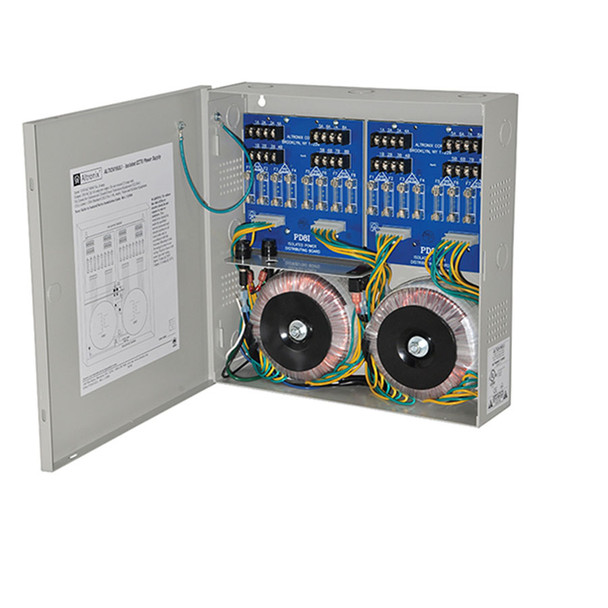

ALTV2416ULI Isolated CCTV Power Supply provides 24VAC distributed via sixteen (16) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

Key Features:

• Input

  • 115VAC, 50/60Hz, 6A.

• Output

  • Sixteen (16) fuse protected outputs.
  • 24VAC @ 25A (600VA) supply current.
  • Outputs are rated @ 3.5A.
  • Surge suppression.

• Features

  • Illuminated master power disconnect circuit breaker with manual reset.
  • Unit maintains camera synchronization.
  • Spare fuses provided.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 304 BTU/Hr.
  • System AC input VA requirement: 690VA.
