Altronix ALTV244175 4 Fused Outputs CCTV Power Supply

(No reviews yet) Write a Review
SKU:
ALTV244175
UPC:
782239932139
  • Altronix ALTV244175 4 Fused Outputs CCTV Power Supply
  • Altronix ALTV244175 4 Fused Outputs CCTV Power Supply
$131.50
Technical Support
  • Number of Supported Cameras : 4
  • Output Voltage : AC 24V AC 28V
  • Input Current : 1.5A
  • Input Voltage : AC 115V
  • Output Current : 7.25A 6.25A

Description

Altronix ALTV244175 4 Fused Outputs CCTV Power Supply

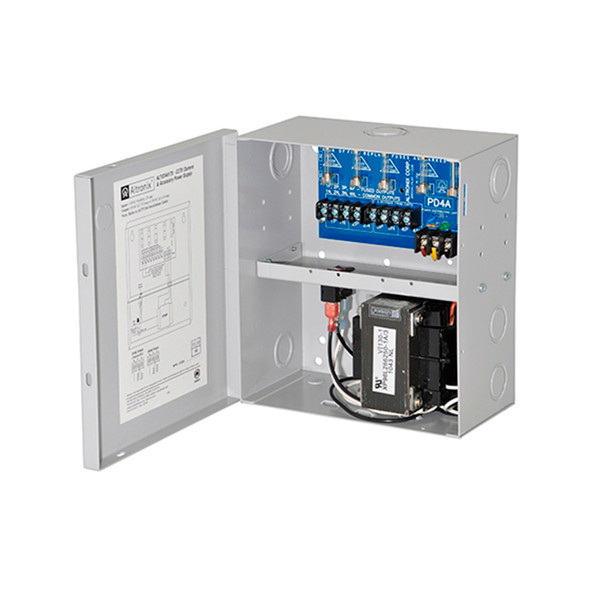

ALTV244175 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories. CCTV Power Supply, 4 Fused Outputs, 24/28VAC @ 7.25A, 115VAC, BC100 Enclosure

Key features of Altronix ALTV244175

  • Input
    • 115VAC, 50/60Hz, 1.5A.
  • Output
    • Four (4) fuse protected outputs.
    • 24VAC @ 7.25A (175VA) supply current (1.81A per device, 3.5A max.) or 28VAC @ 6.25A (175VA) supply current (1.56A per device, 3.5A max.).
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Features
    • Secondary fuse rated @ 10A/250V.
    • AC power LED.
    • Power ON/OFF switch.
    • Spare fuses provided. (all models w/primary and/or secondary fuses).
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 24VAC: 89 BTU/Hr.
        • 28VAC: 90 BTU/Hr.
    • System AC input VA requirement: 172.5VA.
View AllClose

Additional Information

Accessory Type:
Power Supply
Input Current:
1.5A
Input Voltage:
AC 115V
Number of Supported Cameras:
4
Output Current:
7.25A 6.25A
Output Voltage:
AC 24V AC 28V
Warranty:
Life-time Warranty
