Altronix ALTV244300220 CCTV Power Supply - 4 Fused Outputs

Altronix ALTV244300220 CCTV Power Supply - 4 Fused Outputs

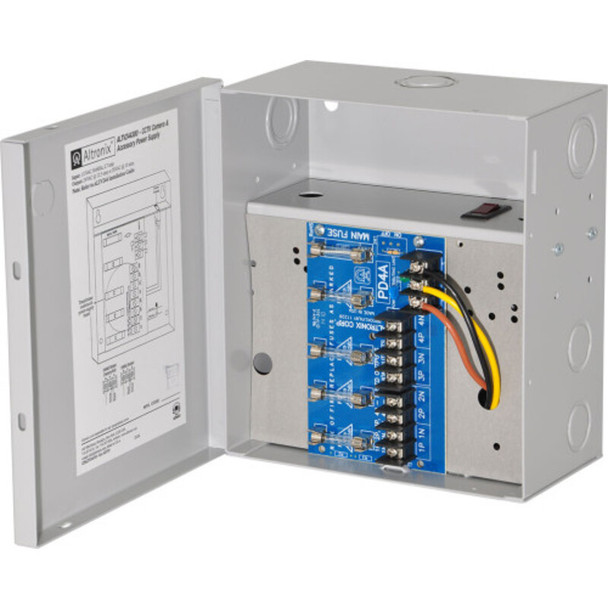

This Altronix AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Key Features:

• Input

  • 220VAC, 50/60Hz, 1.8A.

• Output

  • Four (4) fuse protected outputs.
  • 24VAC @ 12.5A (300VA) supply current (3.13A per device, 3.5A max.) or 28VAC @ 10A (300VA) supply current (2.5A per device, 3.5A max.).
  • Outputs are rated @ 3.5A.
  • Surge suppression.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 24VAC: 154 BTU/Hr.
    • 28VAC: 143 BTU/Hr.
  • System AC input VA requirement: 396VA.

• Features

  • Secondary fuse rated @ 15A/32V.
  • AC power LED.
  • Power ON/OFF switch.
  • Spare fuses provided. (all models w/primary and/or secondary fuses).
